Módulo de Usb Em7455 Dw5811e 4g Lte fd td Lte Catsh Chg Módulo Adequado para E7270 E7470 E7370 E5570 E5470

4G module EM7455 4G LTE card module

1. Módulo de Usb Em7455 Dw5811e 4g Lte – Nome da Marca : Goodpartner

2. Cheap Modems – Número do Modelo : Mc-8505 Mc-8705 Taskalfa 7052ci 8052ci 7353ci 8353ci fs C8600 C8650

3. para E7270 E7470 E7370 E5570 E5470 – Tensão : 110v220v

4. Módulo de Usb Em7455 Dw5811e 4g Lte – Model 4 : fs C8600dn C8650dn

description:

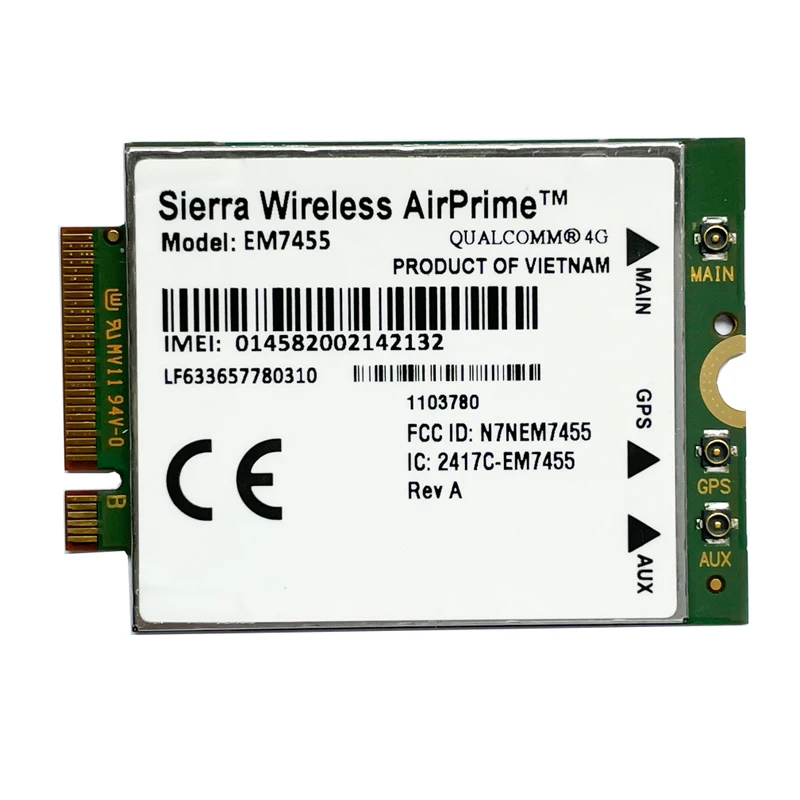

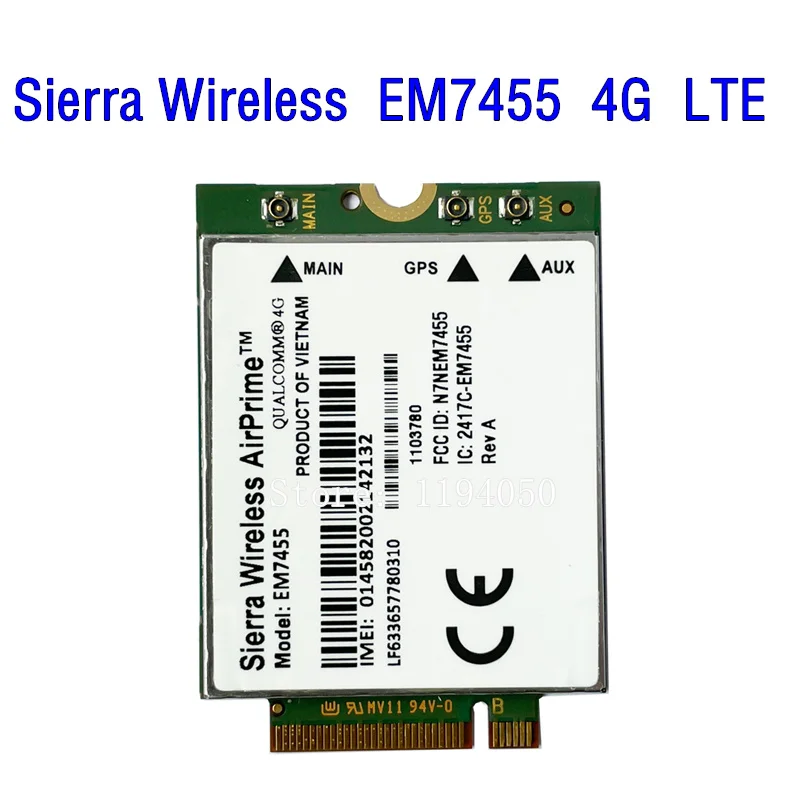

Em7455 is a cat 6 4g-lte (fdd and tdd) module with a downlink data rate of up to 300mbps, mainly for Europe, North and South America. Compatible with carrier aggregation (ca) and mimo. Back to 3g-hspa + dc with rx diversity. Integrated gnss receiver. Compatible frequency range: 4g B1-B5, b7, b8, b12, b13, b20, b25, b26, b29, b30, b41; 3g B1-B5, b8. The external dimension is m.2, 42x30mm. The airprime®em74 series of integrated modules are designed for high-speed industrial m2m and mobile computing solutions, and can provide high-speed connections via LTE and hspa+ networks. According to the m.2 standard with USB port interface, the modules in this series provide a simple upgrade path for new network technologies and global high-speed network access. The m.2 form factor is also called ngff (new generation form factor).

feature

Region: Mainly in Europe, North America and South America

Air ratio: 4g-lte cat 6 (fdd and tdd), with ca (carrier aggregation) and mimo, 3g-hspa + dc, with rx diversity, gnss

4g range: b1 (2100), b2 (1900), b3 (1800), b4 (1700), b5 (850), b7 (2600), b8 (900), b12 (700), b13 (700), b20 ( 800), b25 (1900), b26 (850), b29 (700), b30 (2300), B41 (2500/tdd)

3g range: b1 (2100), b2 (1900), b3 (1800), b4 (1700), b5 (850), b8 (900)

Maximum data rate: dl 300 mbps, ul 50 mbps

Gnss (gps glonas Beidou Galileo*): Qualcomm

Dimensions: Module m.2 42x30x2.3mm

Power supply voltage: nominal 3.3v

Operating temperature: -40°c to +85°c

Control, software and functions

Control options: in the qmi sdk mbim command

For best control, qmi sdk is recommended.

Driver: android linux windows

Use up to three different versions of on-board certified firmware to change the network at any time.

Connector

System connector: 75/67 m.2 position

RF antenna connector: 3x ipex mhf4 (main RF, auxiliary RF, GPS with c.c. diagonal)

interface

package:

DW5811e X 1

USB adapter X1

Antenna (30cm) X3
