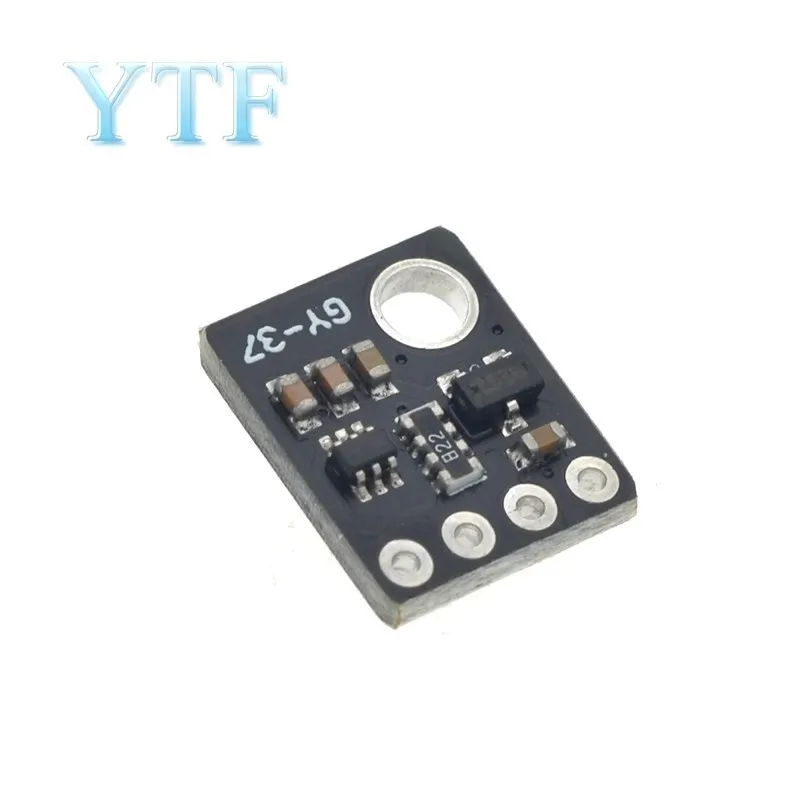

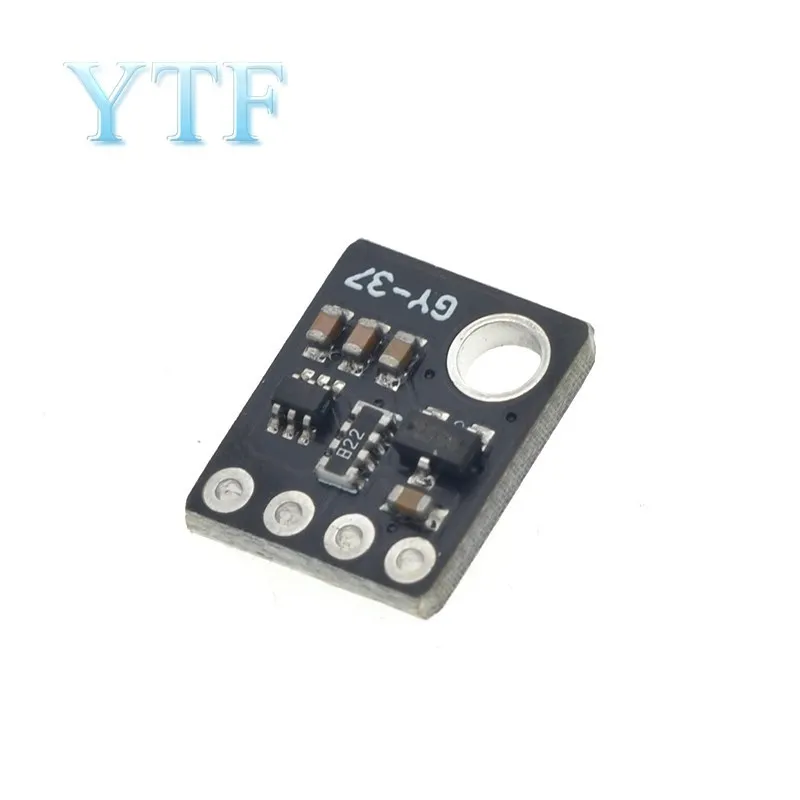

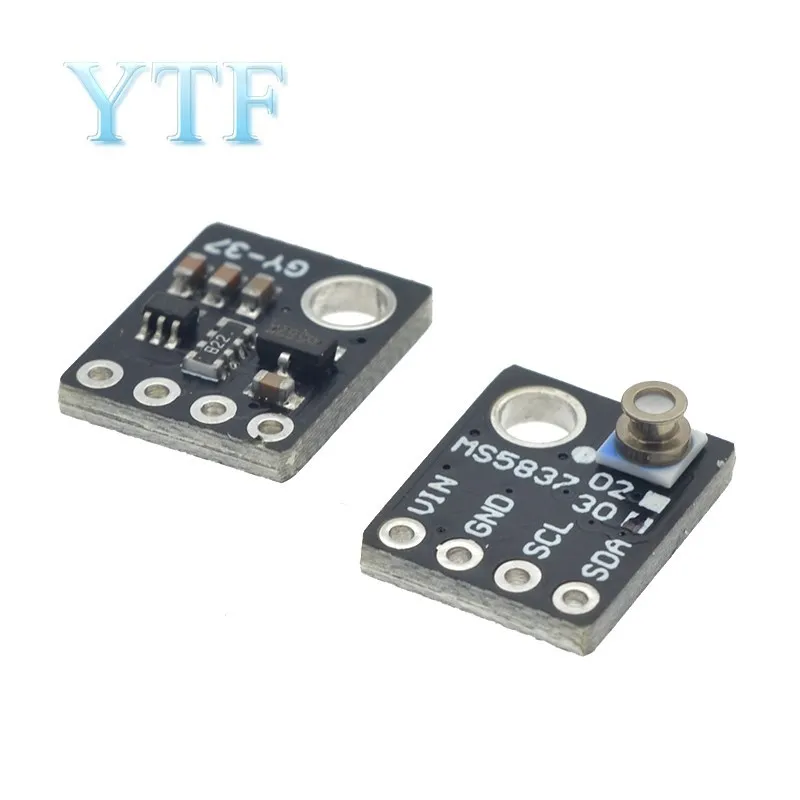

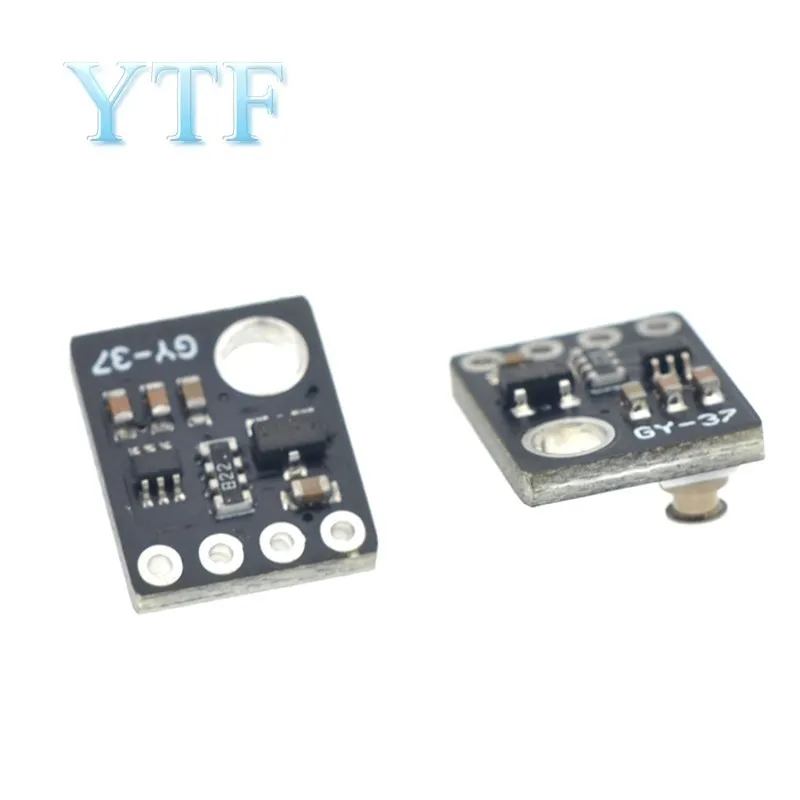

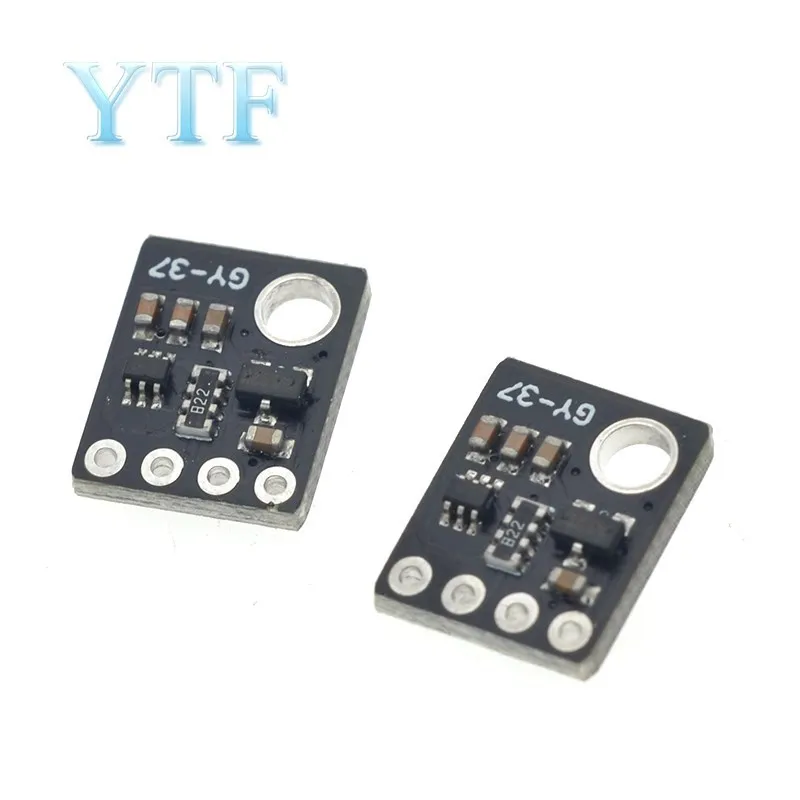

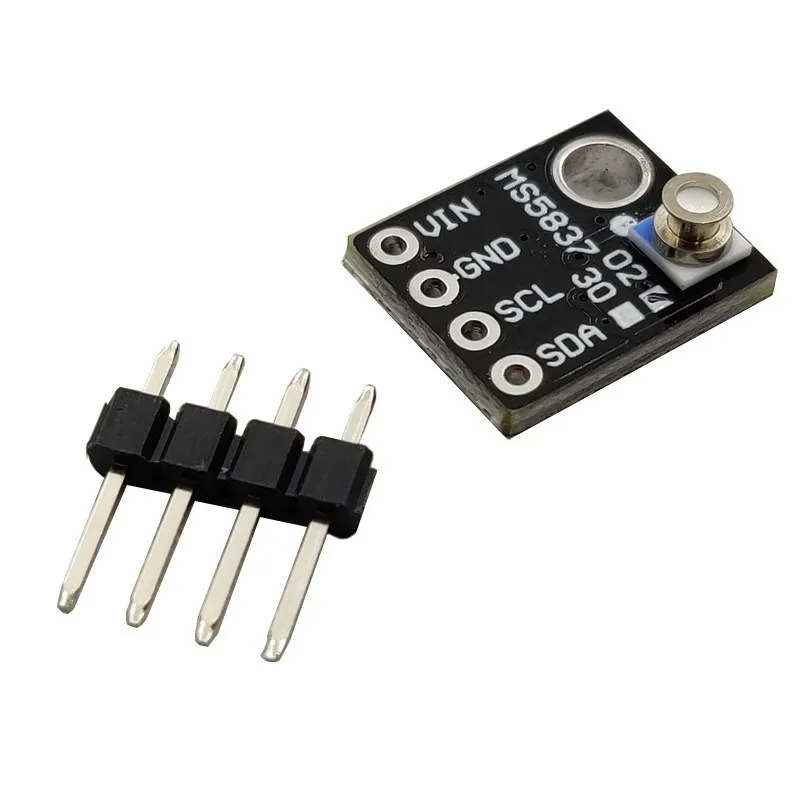

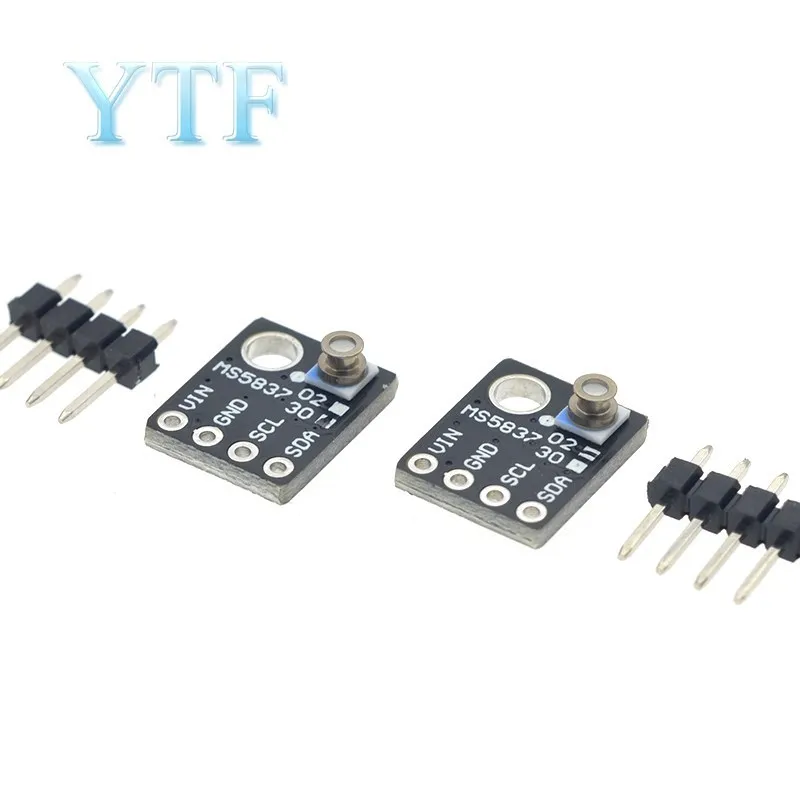

Módulo de Sensor de Pressão à Prova d Água de Gás de Alta Precisão Gy-ms5837 02ba 30ba
R$ 75,68
DÚVIDAS?
Envie um email para:
Produtos relacionados
Acessórios Para Quadro de Demonstração
Opção de Compra e tempo de entrega
Ficha técnica do produto
| Características | Especificações |
|---|---|
| Compatível com | Arduino |
| Tipo de Acessório | Régua de Extensão |
| Nome da Marca | Szfydosh |
| Origem | CN (origem) |
product description
MS5837 is a new generation of high resolution pressure sensor with I2C bus interface. Its water depth resolution is 2 mm. It is suitable for depth measurement system.
Overpressure 50 bar
Sensor Type Digital Pressure and Height Sensor Module
Type Absolute Pressure
Output/span 24-bit ADC
The sensor module consists of a high linear pressure sensor and an ultra-low power 24 bit_ADC with internal factory calibration coefficient. Accurate 24-digit pressure and temperature values and different operating modes are provided. Users can configure conversion speed and current consumption according to their needs. High resolution temperature output enables you to achieve the functions of depth measurement system and thermometer without additional sensors.
MS5837 can connect almost any microcontroller. The communication protocol is simple, and there is no need to program the internal registers in the device. Gel protection and antimagnetic stainless steel cap can ensure that the sensor module is waterproof. This new sensor module is based on advanced MEMS technology and benefits from the mature experience and expertise of MEAS Switzerland in mass manufacturing over the past decade.
advantage
Ceramic-metal package, 3.3 x 3.3 x 2.75 mm
High resolution module, 0.2 mbar
Fast conversion up to 0.5 ms
Low power, 0.6 mu A (standby power < 0.1 mu A at 25 degree C)
Integrated Digital Pressure Sensor (24-bit_ADC)
Power supply voltage: 1.5 to 3.6 V
Temperature range: 20 to + 85 degrees C
I2C interface
No external components (internal oscillator)
Excellent long-term stability
It can be fully sealed and suitable for outdoor equipment
Sealing design, suitable for 1.8 x 0.8 mm O ring
