Ficha técnica do produto
Características
Especificações
Número do Modelo
Ls029b3sx04
Tela
Tela Capacitiva
Tamanho da Tela
< 7 Polegadas
Marca Compatível
Universal
Tipo de Produto
TFT
Nome da Marca
Wisecoco
Origem
CN (origem)
Screen Size
2.9 Inch
Pixel Number
1440×1440 705ppi
Active Area(mm)
51.84 X51.84 (hxv)
Outline(mm)
54.24 X 59.02 X 1.51 (hxvxd)
Luminance
150 CD/
Signal Type
Mipi (2 CH, 4 Data Lanes) , 40 Pins Connector
Color Depth
16.7m 70% Ntsc
Work Mode
Sfr, Normally Black, Transmissive
Contrast Ratio
600 : 1 (typ.) ™

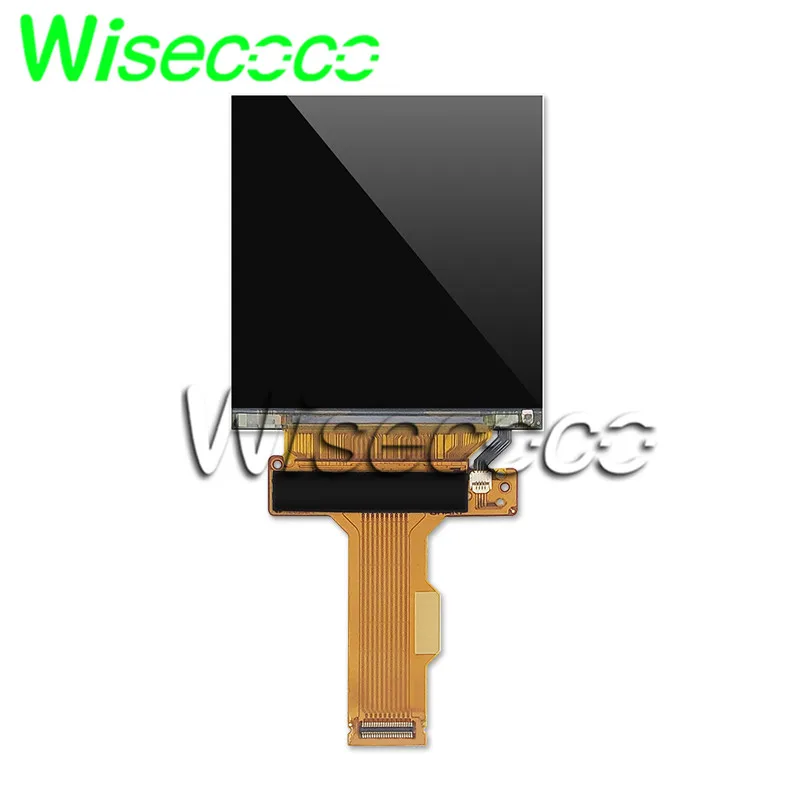

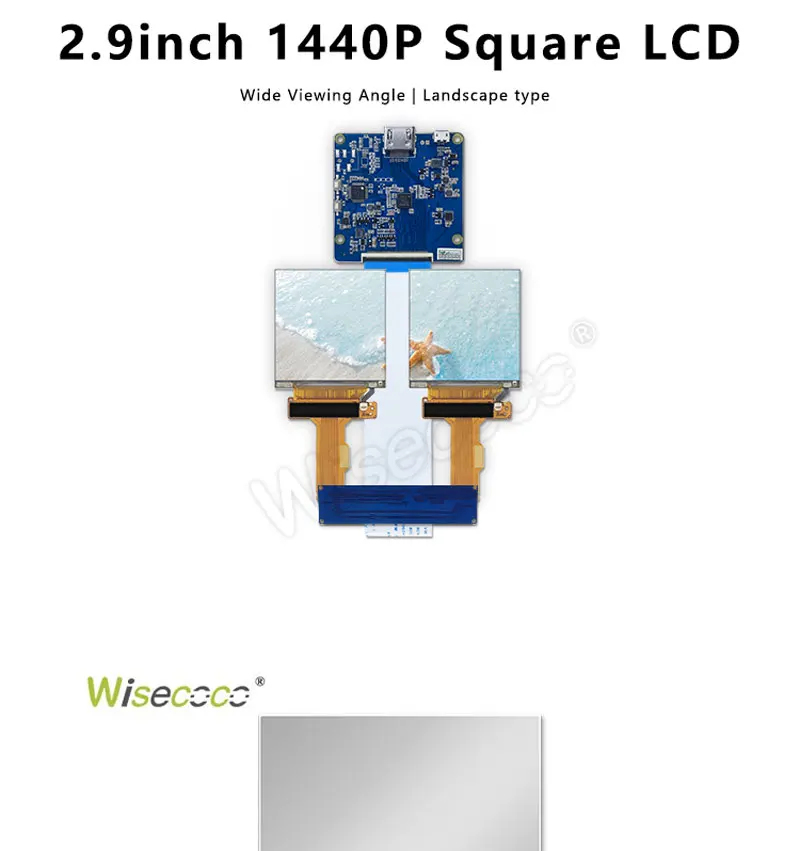

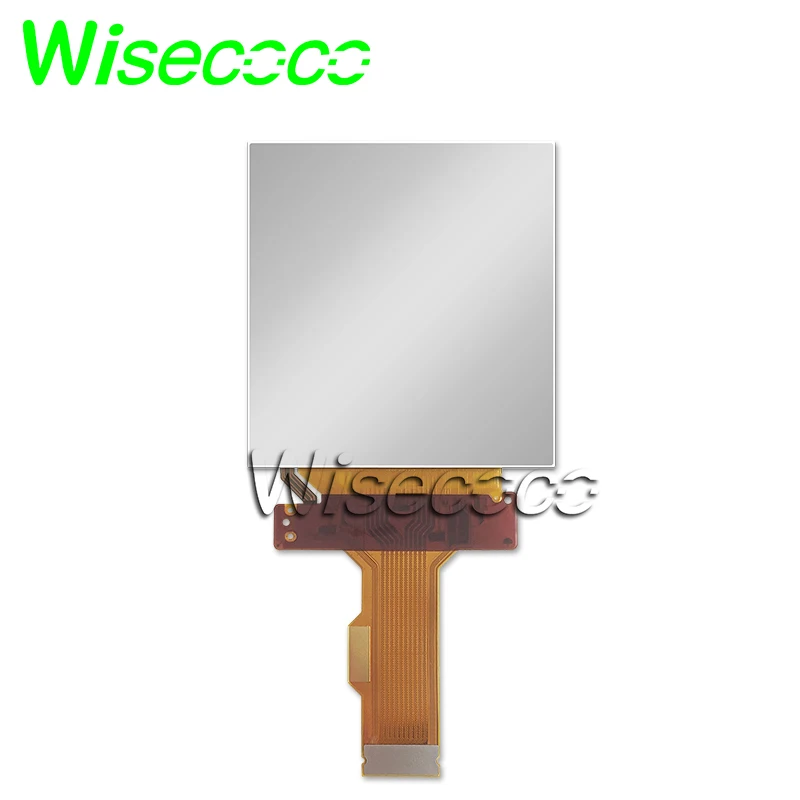

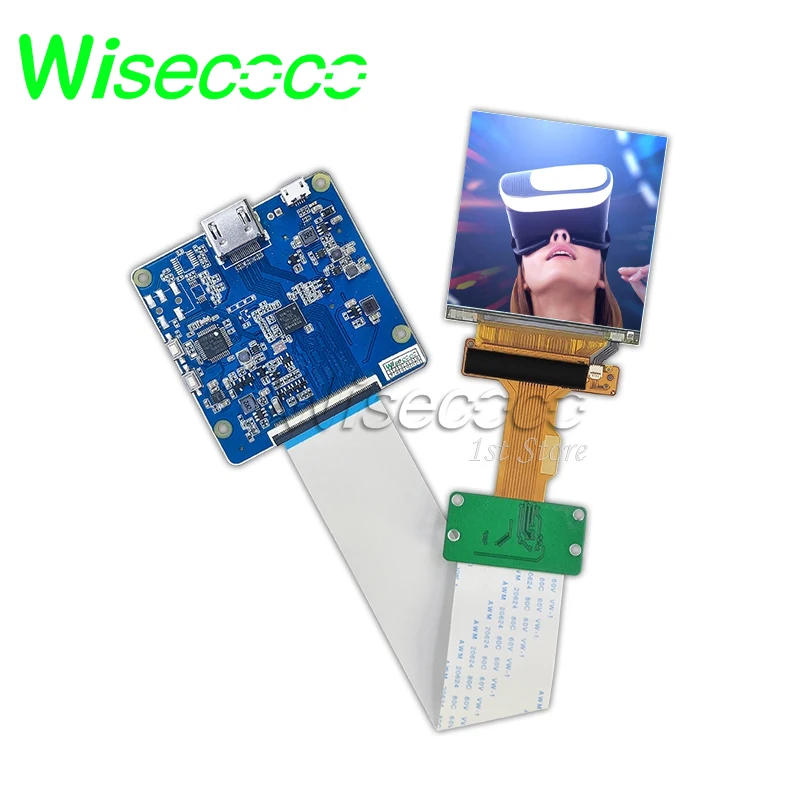

Wisecoco 2.9 Inch VR LCD Display 1440×1440 AR MR HMD Dual Screen LS029B3SX04 MIPI Controller Board 40 Pins
Screen Size 2.9 inch
Screen Type LCM , CG-Silicon
Pixel Number 1440(RGB)×1440 705PPI
Arrangement RGB Vertical Stripe

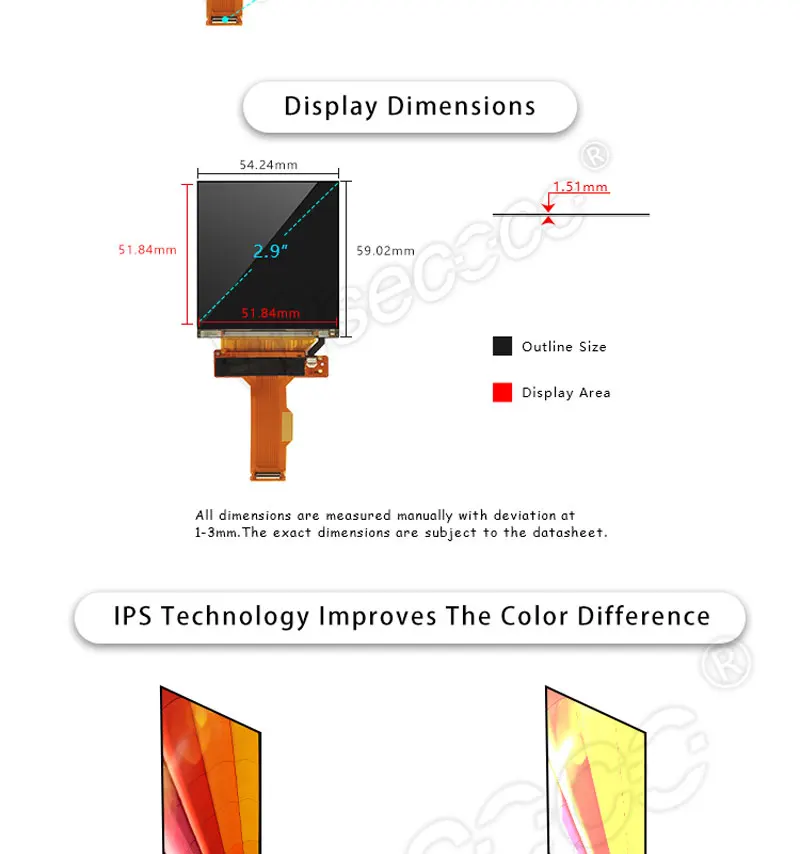

Active Area(mm) 51.84 × 51.84 (H×V)

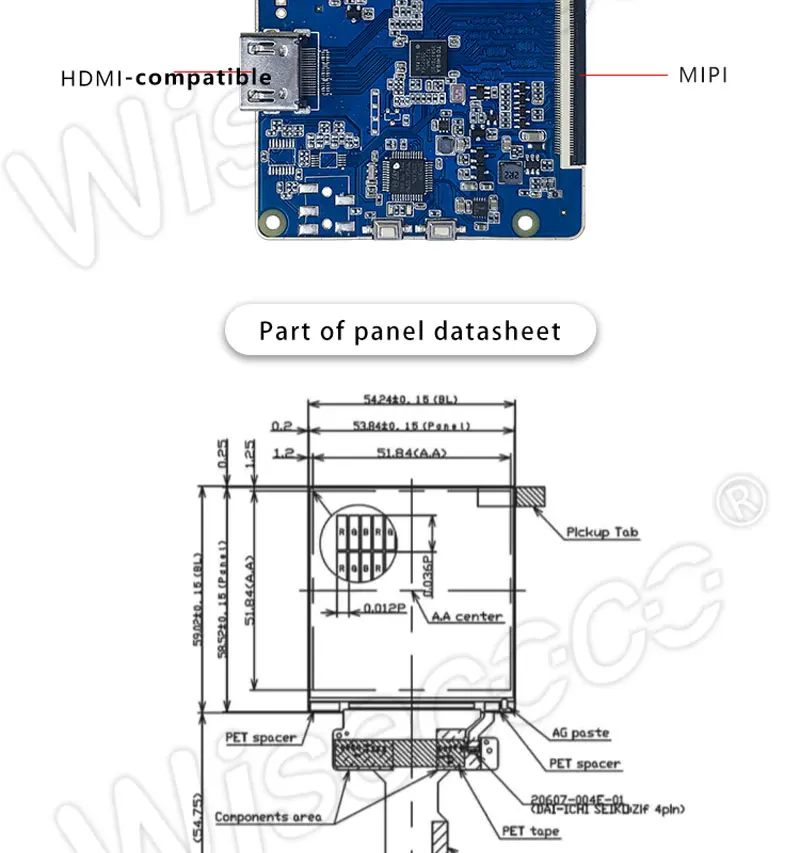

Outline(mm) 54.24 × 59.02 × 1.51 (H×V×D)
Luminance 150 cd/m² (Typ.)
Contrast Ratio 600 : 1 (Typ.) (TM)
Response 4.6/3.5 (Typ.)(Tr/Td) ms
Good View at Symmetry
Work Mode SFR, Normally Black, Transmissive
Color Depth 16.7M 70% NTSC
Backlight 2 strings WLED , No Driver
Used for HMD VR AR
Touchscreen Without

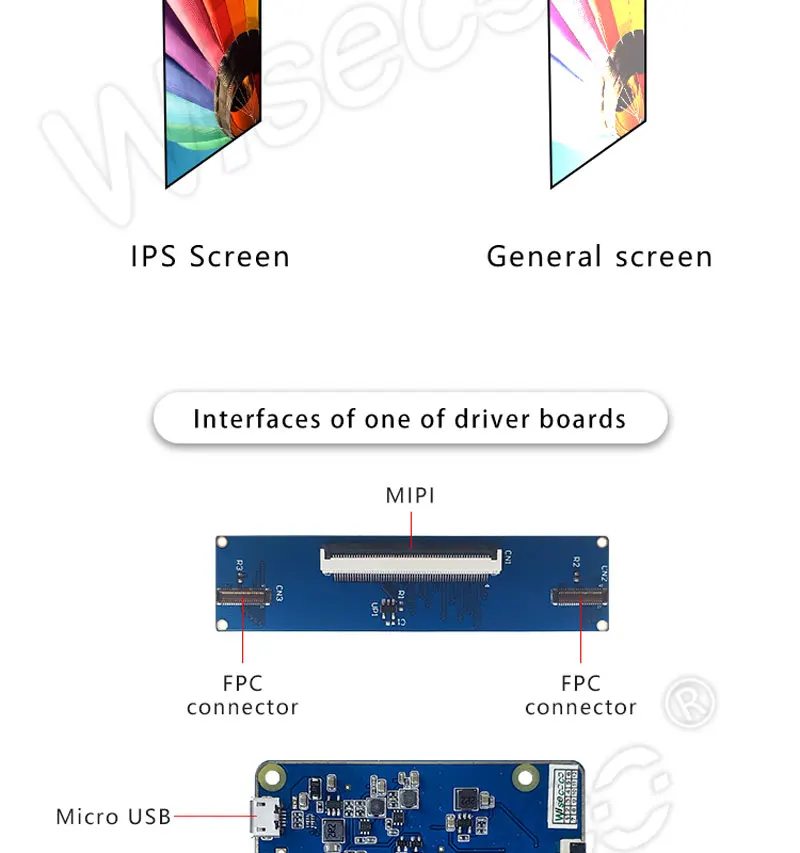

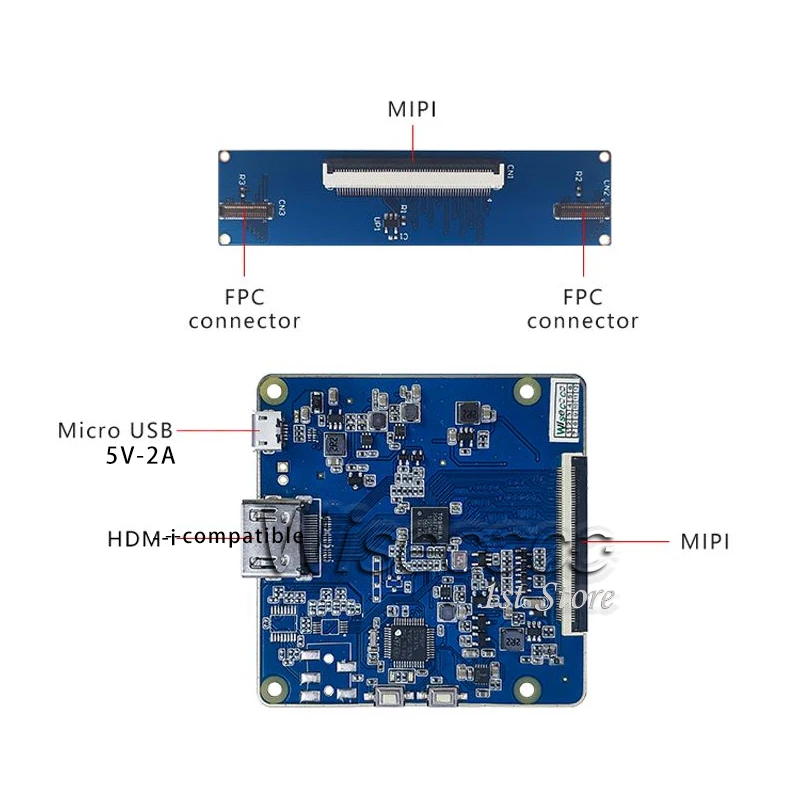

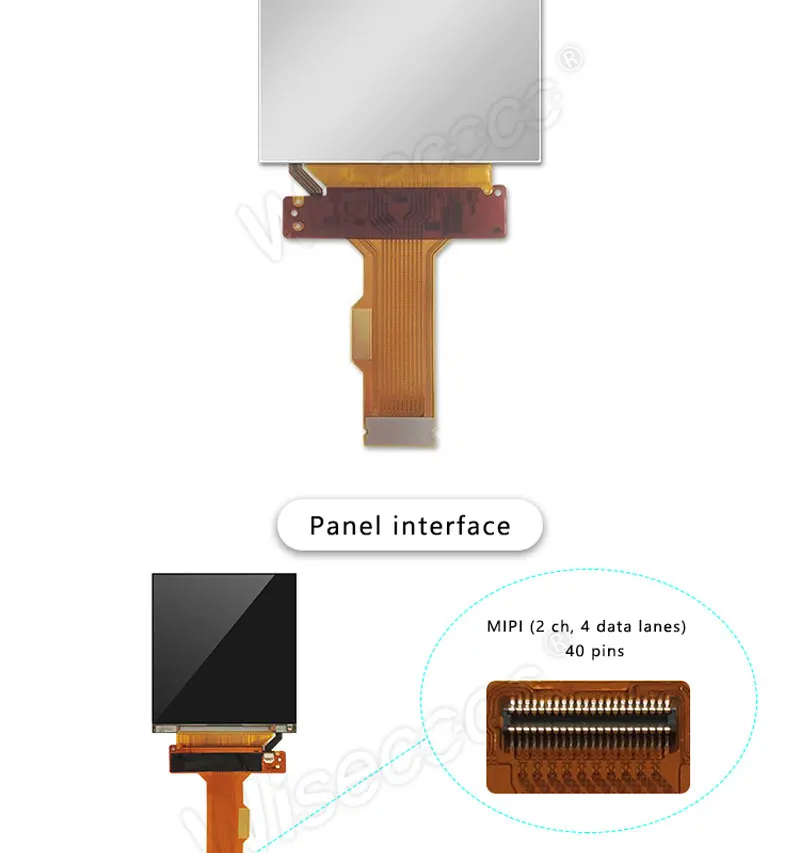

Signal Type MIPI (2 ch, 4 data lanes) , 40 pins Connector
Voltage Supply 5V-2A
Storage Temp.: -30 ~ 70 °C
Operating Temp.: -20 ~ 60 °C
