Polegada Tela de Toque Raspberry pi Lcd Hdmi-display Compatível para Laranja pi Jetson Nano Monitor de Tela Secundária do Computador 7
R$ 198,80
DÚVIDAS?
Envie um email para:
Componentes Para Computadores
Opção de Compra e tempo de entrega
Ficha técnica do produto
Características | Especificações |
---|---|
Compatível com | Raspberry Pi/orange Pi/pc/jetson Nano/banana PI |
Tipo de Acessório | Tela de LCD |
Nome da Marca | Pi-find |
Origem | CN (origem) |
Size | 7 Inch |
Resolution | 1024 X 600 OR 800 X 480 (optional) |
Display Pannel | IPS OR TN (optional) |
7 Inch Touch Screen Raspberry Pi LCD HDMI-compatible Display for Orange Pi Jetson Nano Computer Secondary Screen Monitor
Introduction
7 Inch capacitive touch screen, suitable for Raspberry Pi, Orange Pi, Banana Pi and other mini PC. You can also use it for the computer secondary screen.
Option 1 to Option 6

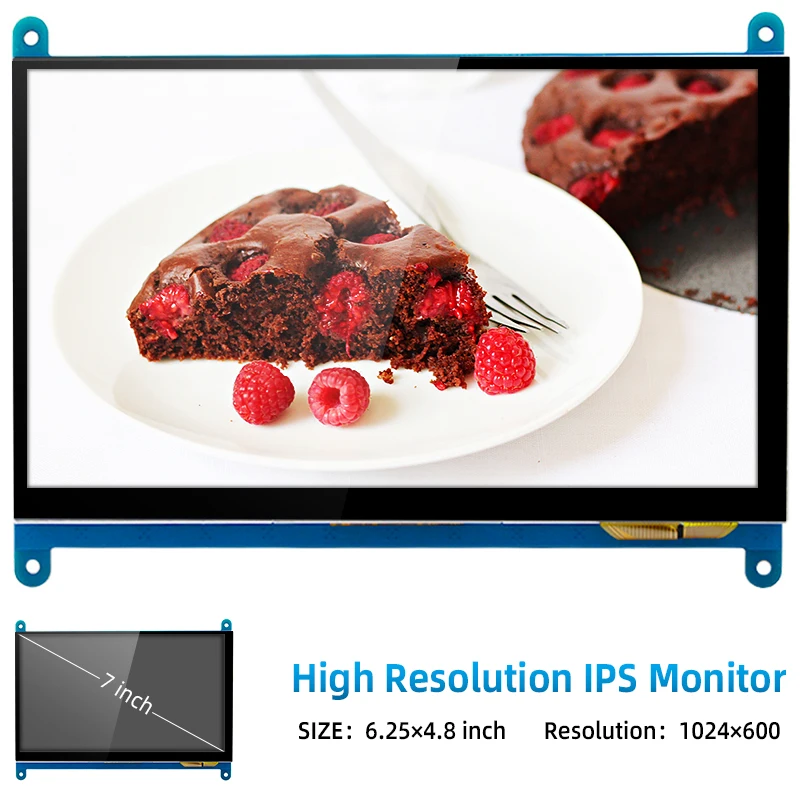

Option 1 and Option 2 : 1024×600 IPS Screen
Option 3 and Option 4: 1024×600 TN Screen
Option 5 and Option 6: 800×480 TN Screen
Features
7‘’ standard display, 1024 × 600 or 800×480 Hardware resolution, Up to 1920×1080 software configuration resolution.

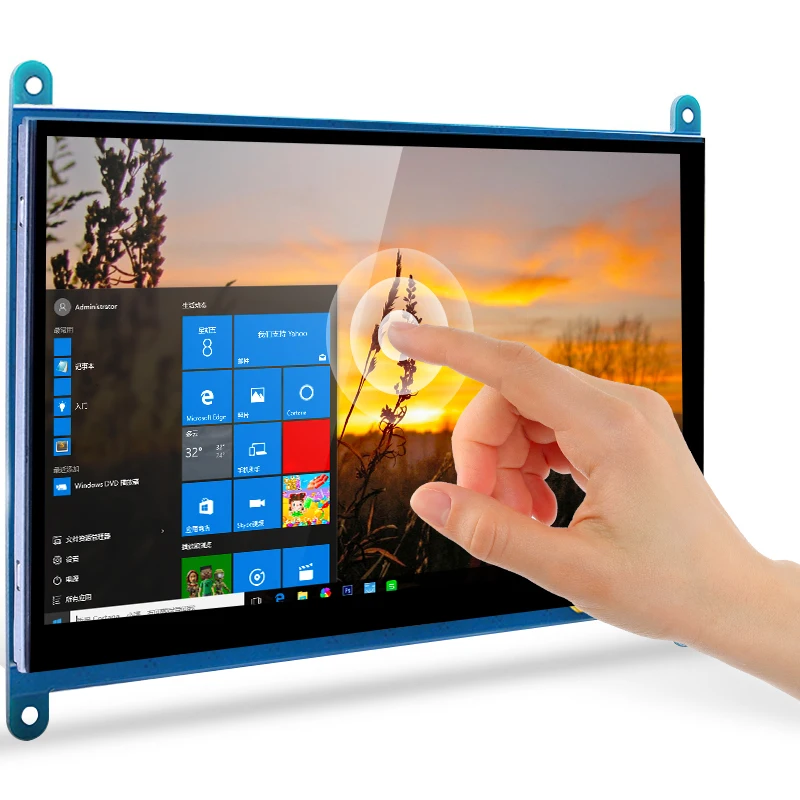

Capacitive touch screen, maximum support 5 point touch
Support backlight control alone, the backlight can be turned off to save power
Support Raspberry Pi, BB Black, Banana Pi and other mainstream mini PC
Can be used as general-purpose-use HDMI-compatible monitor, for example: connect with a computer HDMI-comaptible as the sub-display
Used as a raspberry pi display that supports Raspbian, Ubuntu, Kali-Linux, Kodi, win10 IOT, single-touch, free drive
Work as a PC monitor, support win7, win8, win10 system 5 point touch (XP and older version system: single-point touch), free drive
Parameters
Size: 7.0 (inch)
Resolution: 1024*600 or 800*480(dots)
Touch: five-point capacitive touch
Active Area: 154.2144*85.92(mm)
Product Size: 164.9*124.27 (mm)
Package Size: 211*150*53 (mm)
Rough Weight(Package containing): 405 (g)
Power Dissipation: 0.62A*5V
Interface
? Backlight Power switch: Controls the backlight turned on and off to save power.
?&? USB Touch / power supply connector: For power supply and touch output, the functions of the both are the same, can just use one of them.
? HDMI-compatible interface: For connecting motherboard and LCD monitor to HDMI-compatible transmission.

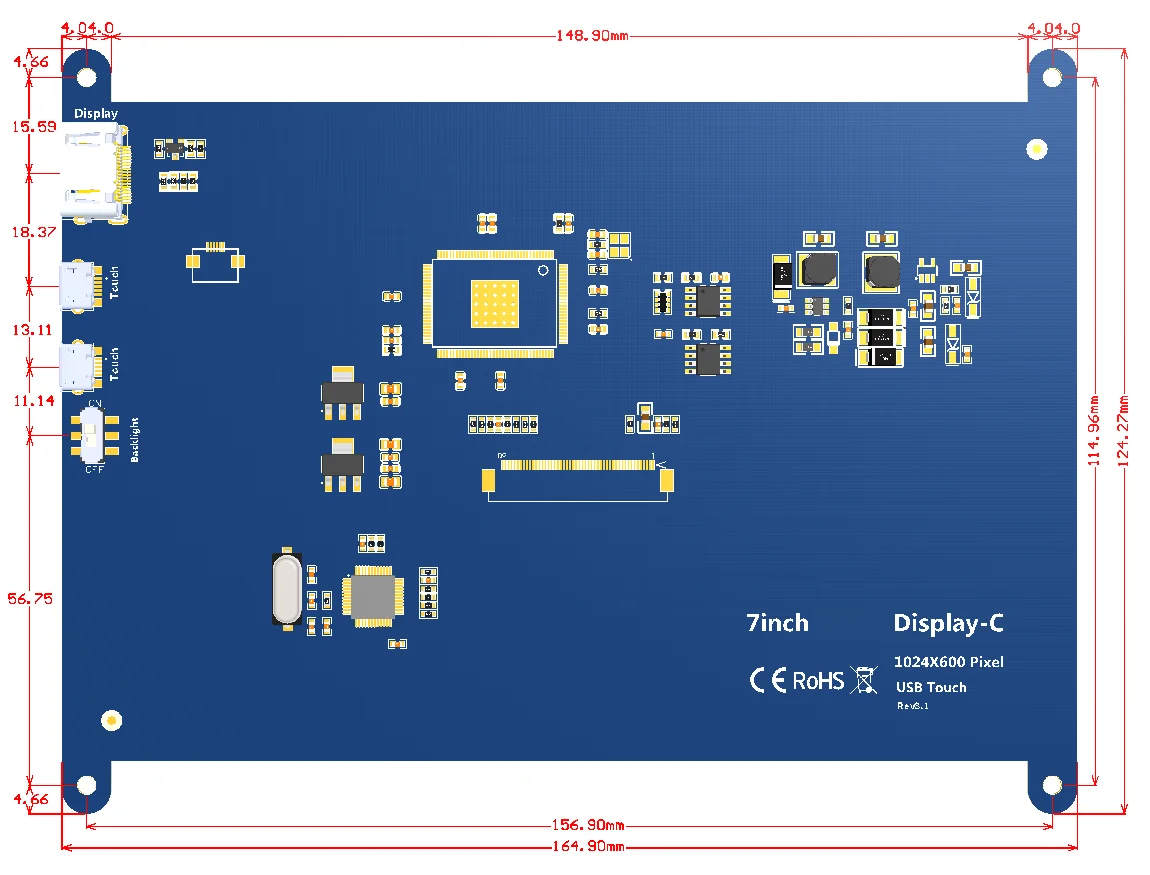

Dimension
1. 7 Polegada Tela de Toque Raspberry pi
How to Use
Please click the following pictures
2. Nano Monitor de Tela Secundária do Computador
3. 7 Polegada Tela de Toque Raspberry pi
4. Nano Monitor de Tela Secundária do Computador
5. 7 Polegada Tela de Toque Raspberry pi
6. Nano Monitor de Tela Secundária do Computador
Option 7 to 8
Option 7: 1024×600 IPS Screen (without Speaker)
Option 8: 1024×600 IPS Screen, with 2 Speakers
Features

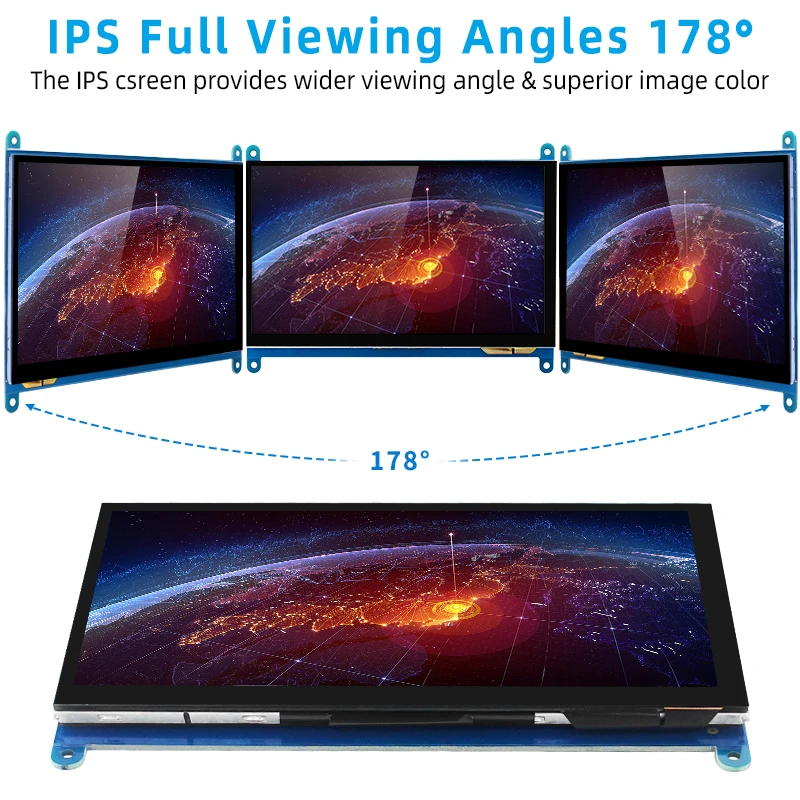

IPS full Angle display
The viewing Angle is large
true color
Dynamic picture quality is excellent
Energy saving and environmental protection
1024X600 hd vision
Resolution for hd 1024X600 dot matrix
It is more delicate than 800X480 ordinary screen
Tempered glass touch panel
Hardness up to 6H, more durable and more scratch resistant
External audio output interface
Built – in power amplifier circuit
3.5mm external audio interface

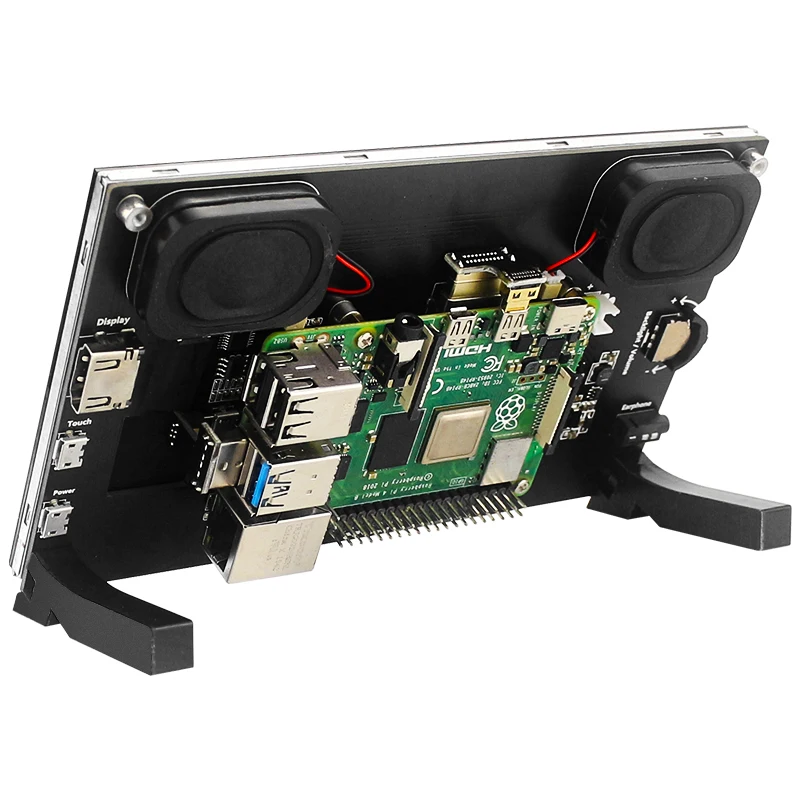

Used as a mini PC monitor
Support raspberry pie, Banana Pi, BB Black and other mainstream development board
Support Raspbian, Kali Linux, ubuntu and other mainstream systems, single touch plug and play without driver.
Used as a computer display
Support win10/win8/win7 system, support five-point touch plug and play driver
Parameters
Screen Type: IPS screen
Screen Size: 7.0 inch
Resolution: 1024 x 600
Backlight adjustment: Independent button to adjust
Touch Screen Type: Capacitive Touch Screen
Touch IC: GT911
Power: MicroUSB(5V/2A
Video Input Interface: HDMI-compatible
Audio Output Interface: 3.5mm Audio Interface
Module Size (L x W x H): 164.90 × 102.00 × (14.25±0.2)mm

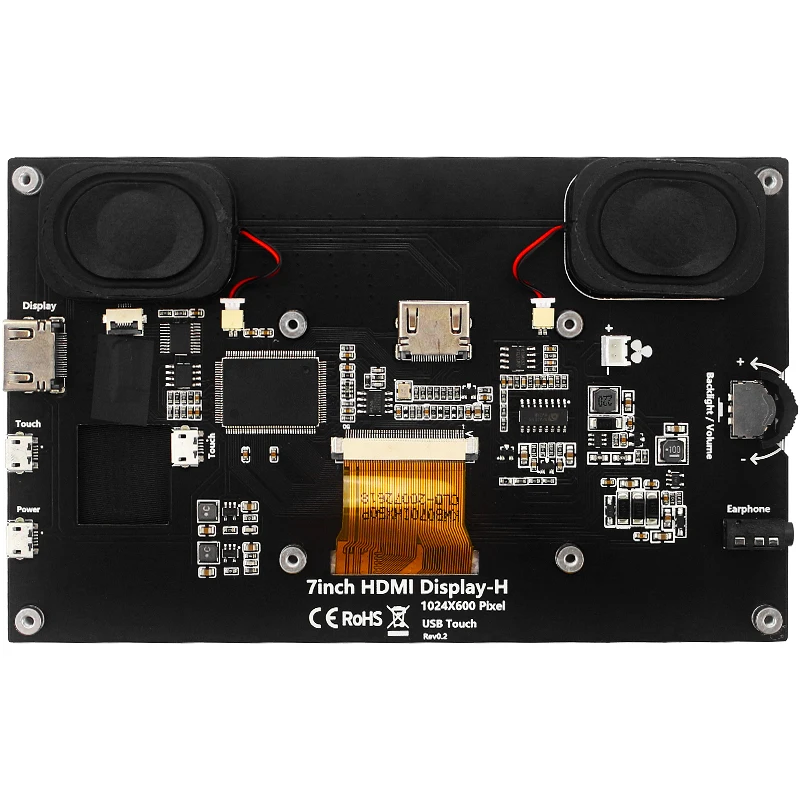

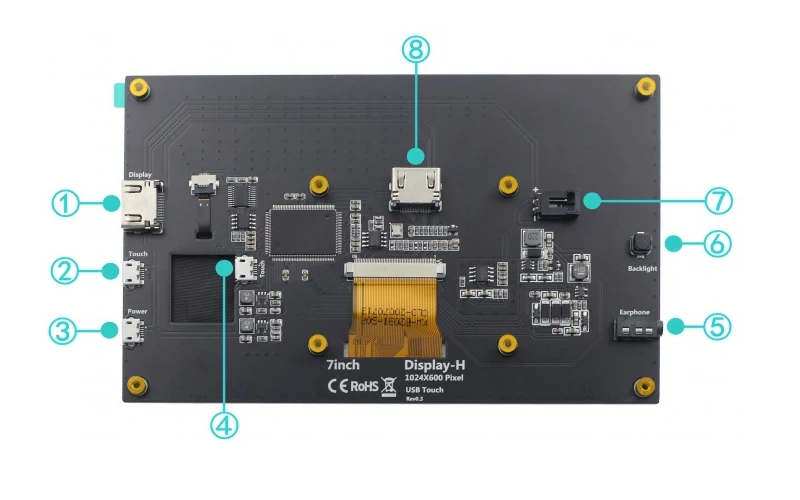

Key and Interface
7. 7 Polegada Tela de Toque Raspberry pi
? HDMI-compatible Interface:
Input HDMI-compatible signal, using HDMI-compatible cable connection, commonly used to connect to the computer,The maximum supported resolution is 1920×1080
? Touch Interface:
Transfer touch signal, connect with micro USB cable, provide touch and power supply function, commonly used to connect computer
? Power Interface:
Connect to the power supply and use micro USB cable to connect. Only power supply function is provided
? Touch Interface:
Transmit touch signal, connect with micro USB cable, provide touch and power supply function, commonly used to connect Raspberry Pi
? 3.5mm Audio Interface:
Output audio signal, connect audio output device, such as headphones
? Backlight Adjustment Button:
Adjust the backlight brightness of the display screen. With each click, the backlight brightness increases by 10, the maximum increases to 100, and then starts from 0,Press and hold for 3 seconds to turn off the backlight
? Cooling Fan Interface:
Connect cooling fan
? HDMI-compatible Interface
Input HDMI-compatible signal, connect with HDMI-compatible adapter, only used to connect to the Raspberry Pi,The maximum supported resolution is 1024×600

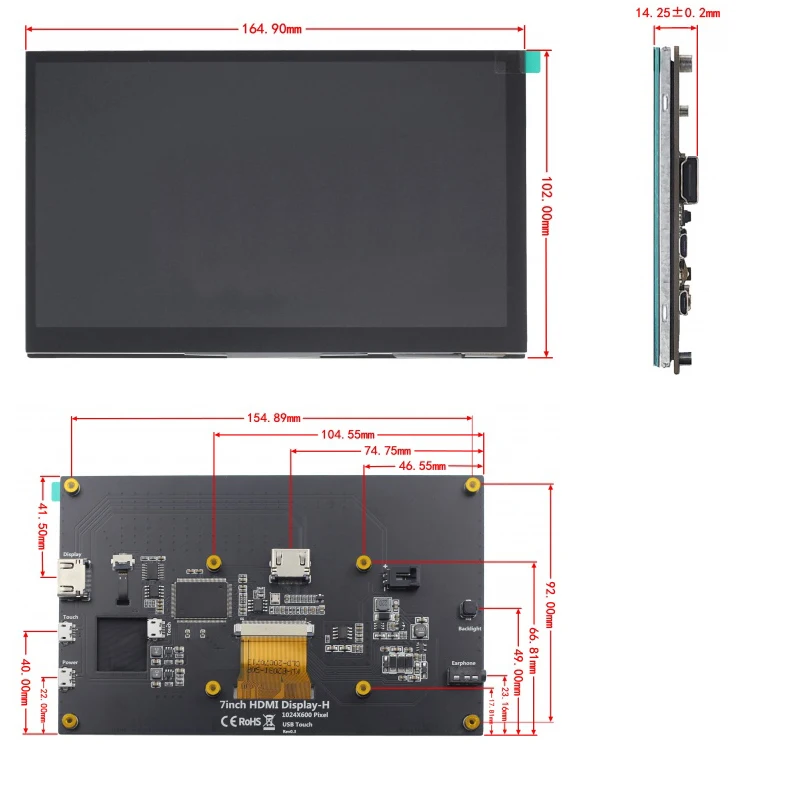

Dimension
8. Nano Monitor de Tela Secundária do Computador
How to Use
Please click the following picture
9. 7 Polegada Tela de Toque Raspberry pi
10. Nano Monitor de Tela Secundária do Computador
11. 7 Polegada Tela de Toque Raspberry pi
12. Nano Monitor de Tela Secundária do Computador
13. 7 Polegada Tela de Toque Raspberry pi
14. Nano Monitor de Tela Secundária do Computador
15. 7 Polegada Tela de Toque Raspberry pi

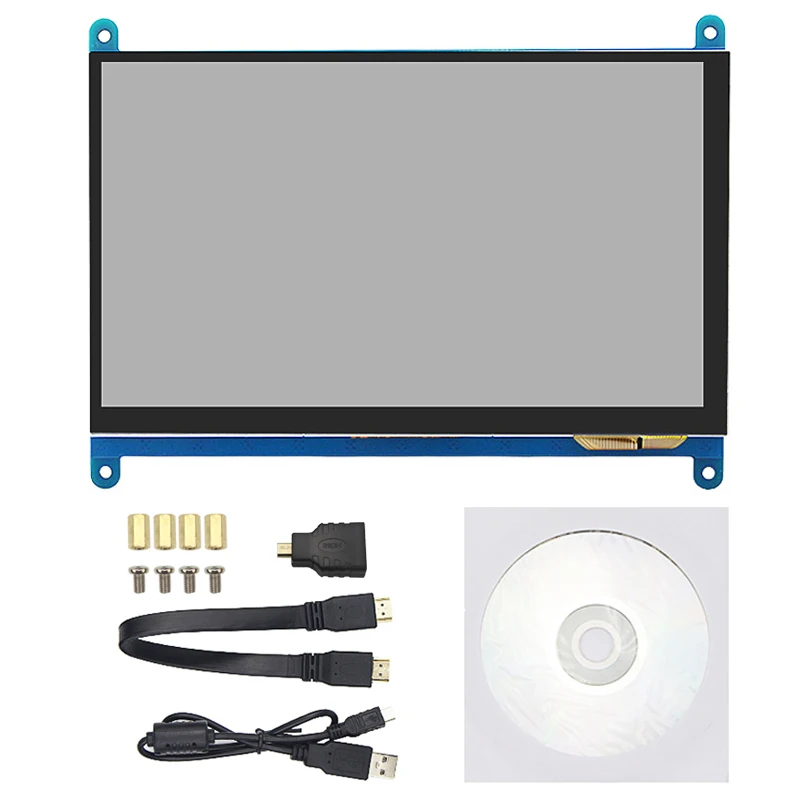

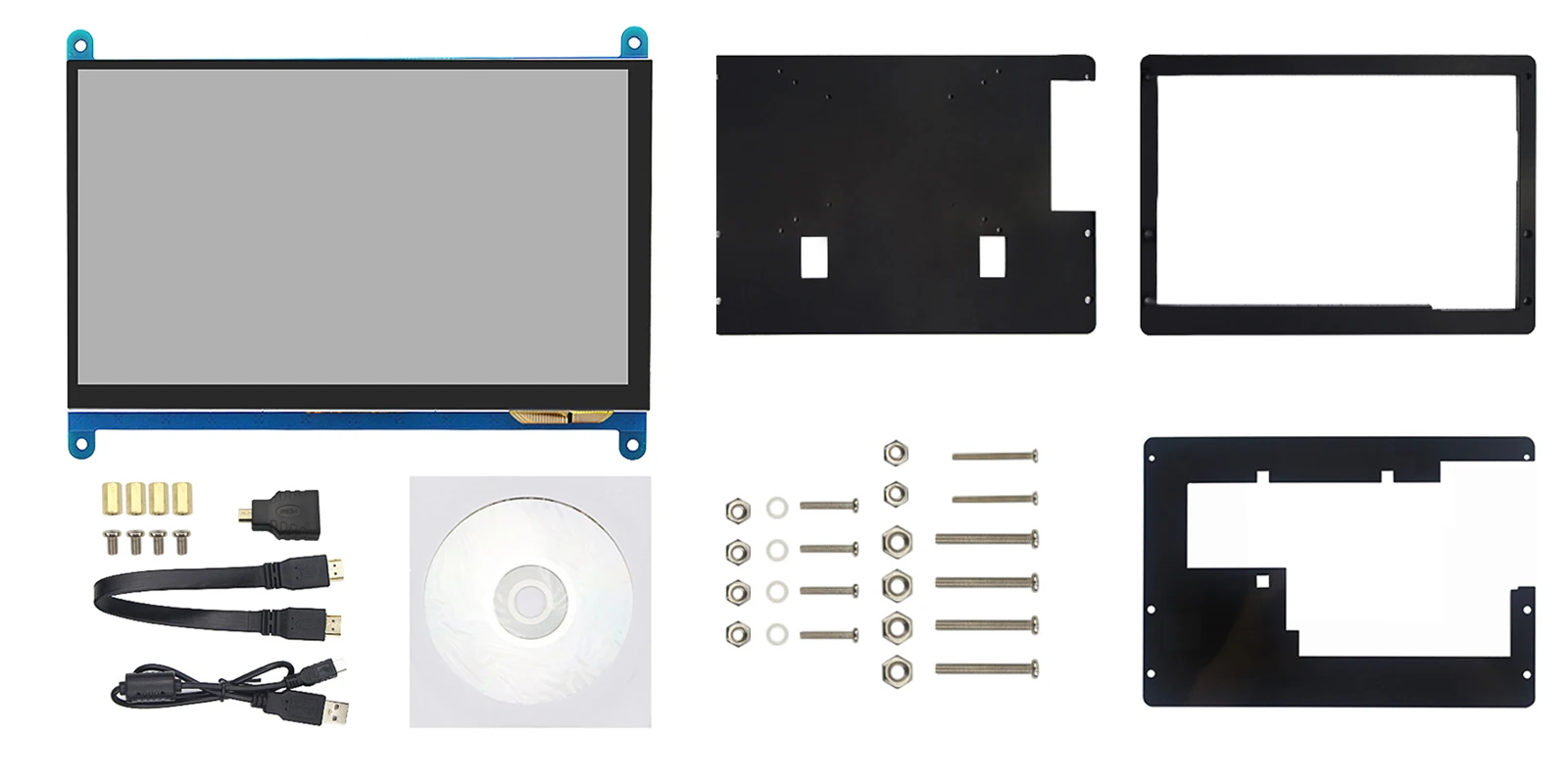

Packing List
Option 1
1 x 1024×600 IPS Touch Screen
1 x HDMI-compatible Cable
1 x Micro HDMI-compatible Adapter
1 x USB Cable
1 x CD (manual)
1 set x Screws and Nuts
(not include Raspberry Pi)
20. Nano Monitor de Tela Secundária do Computador
Option 2
1 x 1024×600 IPS Touch Screen
1 x HDMI-compatible Cable
1 x Micro HDMI-compatible Adapter
1 x USB Cable
1 x CD (manual)
1 set x Screws and Nuts
1 x Acryli Holder
(not include Raspberry Pi)
21. 7 Polegada Tela de Toque Raspberry pi
Option 3
1 x 1024×600 TN Touch Screen
1 x HDMI-compatible Cable
1 x Micro HDMI-compatible Adapter
1 x USB Cable
1 x CD (manual)
1 set x Screws and Nuts
(not include Raspberry Pi)
20. Nano Monitor de Tela Secundária do Computador
Option 4
1 x 1024×600 TN Touch Screen
1 x HDMI-compatible Cable
1 x Micro HDMI-compatible Adapter
1 x USB Cable
1 x CD (manual)
1 set x Screws and Nuts
1 x Acryli Holder
(not include Raspberry Pi)
21. 7 Polegada Tela de Toque Raspberry pi
Option 5
1 x 800×480 IPS Touch Screen
1 x HDMI-compatible Cable
1 x Micro HDMI-compatible Adapter
1 x USB Cable
1 x CD (manual)
1 set x Screws and Nuts
1 x Acryli Holder
(not include Raspberry Pi)
20. Nano Monitor de Tela Secundária do Computador
Option 6
1 x 800×480 TN Touch Screen
1 x HDMI-compatible Cable
1 x Micro HDMI-compatible Adapter
1 x USB Cable
1 x CD (manual)
1 set x Screws and Nuts
1 x Acryli Holder
(not include Raspberry Pi)
21. 7 Polegada Tela de Toque Raspberry pi

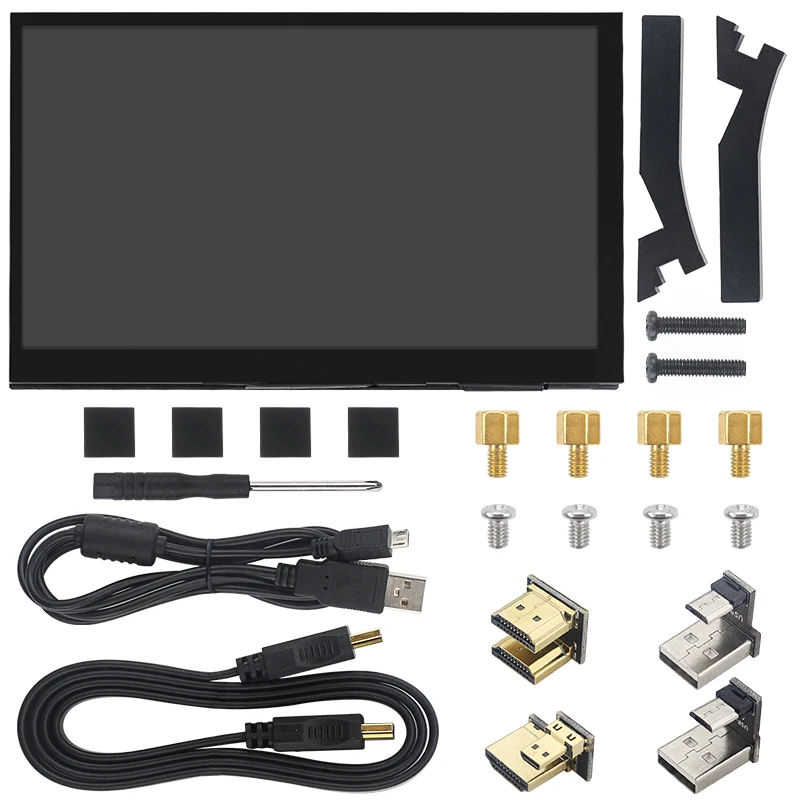

Option 7
1 x 1024×600 IPS Touch Screen
1 x USB Cable
1 x HDMI-compatible Cable
2 x USB Adapter
1 x HDMI-compatible Adapter
1 x Micro HDMI-compatible Adapter
2 x Holder Feet
1 x Screwsdriver
1 set x Screws and Nuts
(not include Raspberry Pi)
22. Nano Monitor de Tela Secundária do Computador

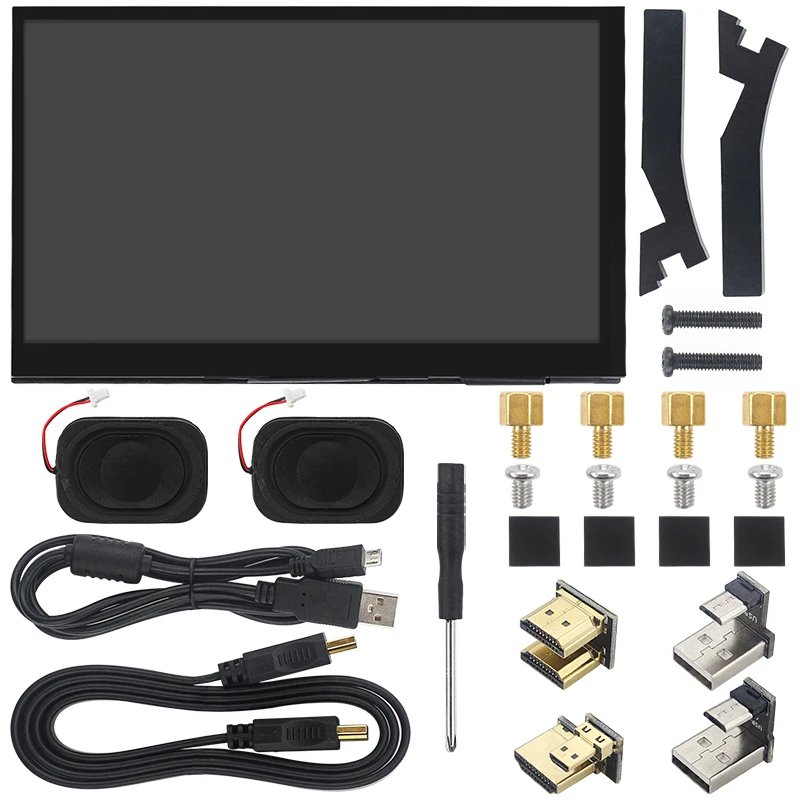

Option 8
1 x 1024×600 IPS Touch Screen
1 x USB Cable
1 x HDMI-compatible Cable
2 x USB Adapter
1 x HDMI-compatible Adapter
1 x Micro HDMI-compatible Adapter
2 x Holder Feet
1 x Screwsdriver
1 set x Screws and Nuts
2 x Speakers
(not include Raspberry Pi)
23. 7 Polegada Tela de Toque Raspberry pi
