para o Cabo Rj45 Cat5 Ethernet do Console de Cisco a Rs232 Db9 com Porta Serial Fêmea Roteadores Rede Adaptador Cabo Azul 1.5m 6ft
R$ 23,16
DÚVIDAS?
Envie um email para:
Produtos relacionados
Periféricos de Computador
Opção de Compra e tempo de entrega
Aviso Para mais informações sobre esse produto com preço promocionais e forma de entrega, click no botão abaixo e visite o portal da loja
Ficha técnica do produto
| Características | Especificações |
|---|---|
| Tipo | Cabo de Alimentação |
| Origem | CN (origem) |
For Cisco Console Cable RJ45 Cat5 Ethernet to Rs232 DB9 COM Port Serial Female Routers Network Adapter Cable Blue 1.5m 6Ft
[ product introduction]
Length: 1.5m
Interface: RS232 (serial port), com (network cable port)
Material: copper 28Awg wire gauge 8C flat wire,
Color: sky blue
OD:2.3*8.1MM
:

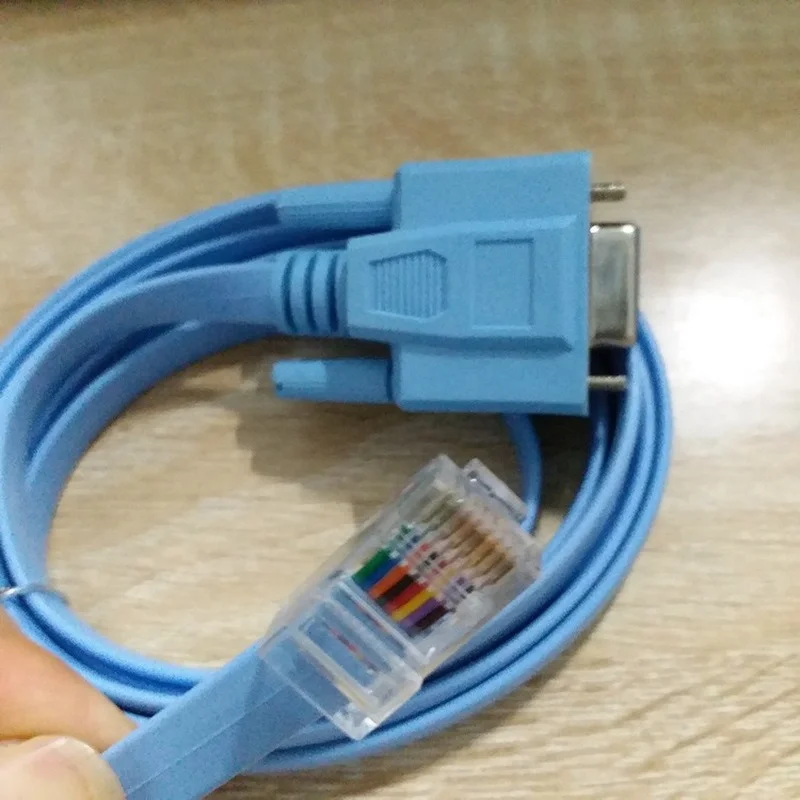

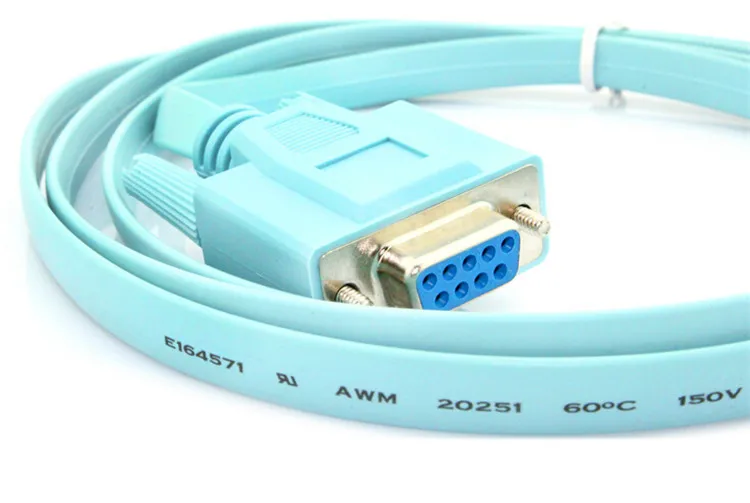

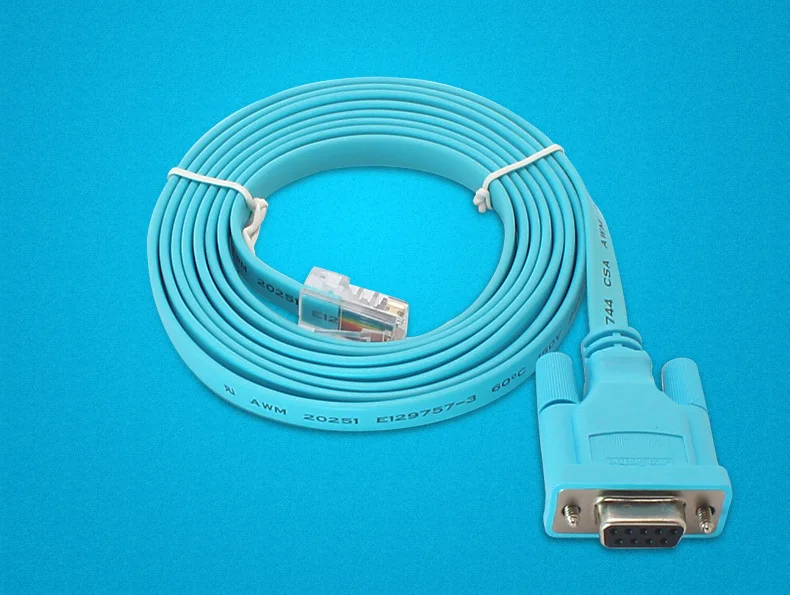

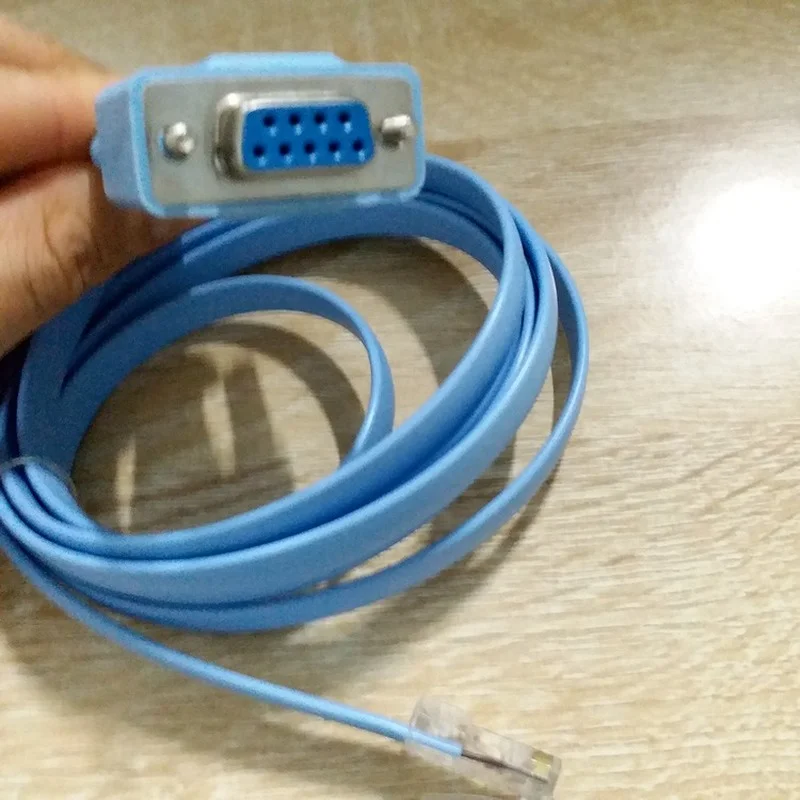

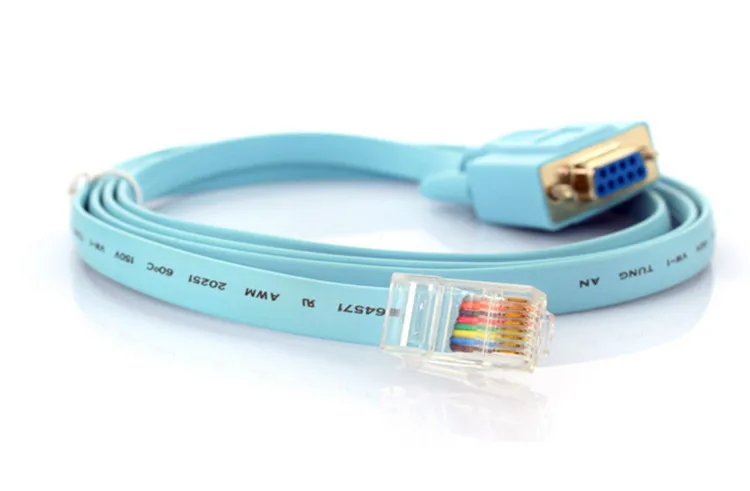

One end is RJ45 crystal net, and the other end is 9-pin female head, which is used for connecting it machines with various PC devices
Cisco console configuration line, RJ45 serial port, no turning head. General Cisco network devices have a console interface, which is used to set the device or operate at a lower level.

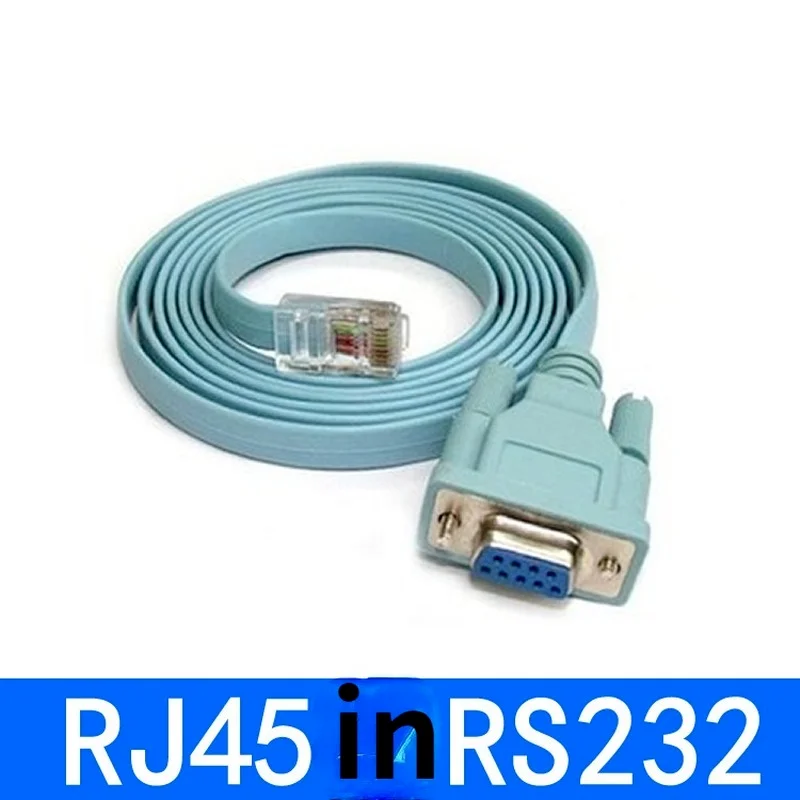

RS-232 serial port to RJ45 crystal head cable
Interface: RS-232 9 (female) to RJ45 (male)
Flat line, blue.
This is the control line for routers and switches produced by Cisco. It can be used not only on Cisco equipment, but also on routers and switches of other brands. Because many machines of other brands have the same structural principle as Cisco, generally speaking, if you want to buy 9 holes (232 ports) on one side and RJ45 (network cable port) on the other side, this line is universal!
The wiring mode is as follows:
DB9F——RJ45
2————3
3————6
4————7
5————4+5
6————2
7————8
8————1
Length: 1.5m
Interface: RS232 (serial port), com (network cable port)
Material: copper 28Awg wire gauge 8C flat wire,
Color: sky blue
OD:2.3*8.1MM
One end is RJ45 crystal net, and the other end is 9-pin female head, which is used for connecting it machines with various PC devices
Cisco console configuration line, RJ45 serial port, no turning head. General Cisco network devices have a console interface, which is used to set the device or operate at a lower level.
RS-232 serial port to RJ45 crystal head cable
Interface: RS-232 9 (female) to RJ45 (male)
Flat line, blue.
This is the control line for routers and switches produced by Cisco. It can be used not only on Cisco equipment, but also on routers and switches of other brands. Because many machines of other brands have the same structural principle as Cisco, generally speaking, if you want to buy 9 holes (232 ports) on one side and RJ45 (network cable port) on the other side, this line is universal!
The wiring mode is as follows:
DB9F——RJ45
2————3
3————6
4————7
5————4+5
6————2
7————8
8————1
