Oficial M5stickcplus Speaker Hat Max98357 M5stack
R$ 31,04
DÚVIDAS?
Envie um email para:
Produtos relacionados
Componentes Para Computadores
Opção de Compra e tempo de entrega
Ficha técnica do produto
| Características | Especificações |
|---|---|
| Número do Modelo | U055-b |
| Nome da Marca | M5stack |
Description

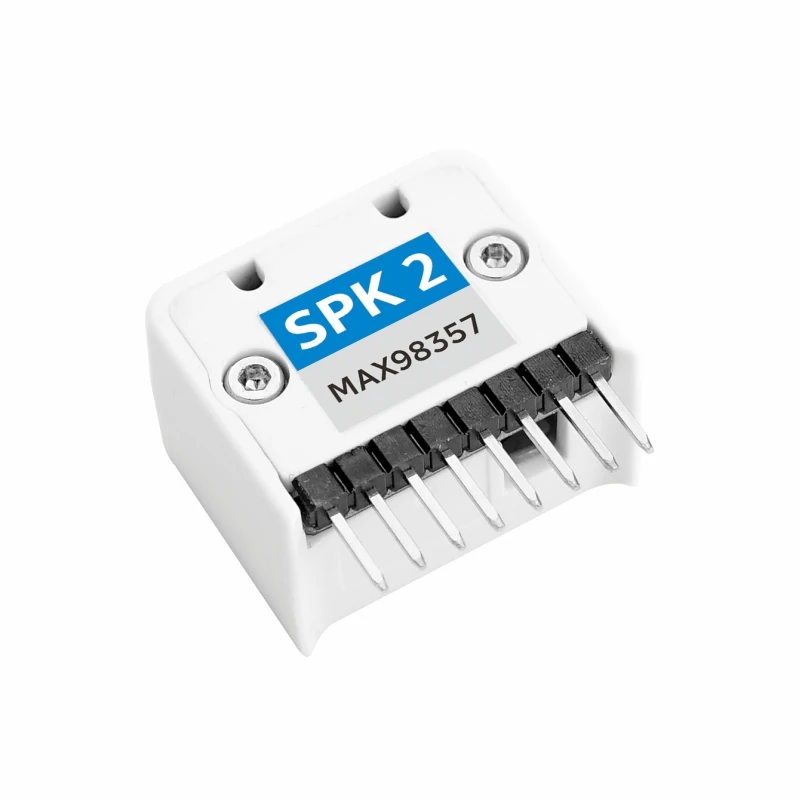

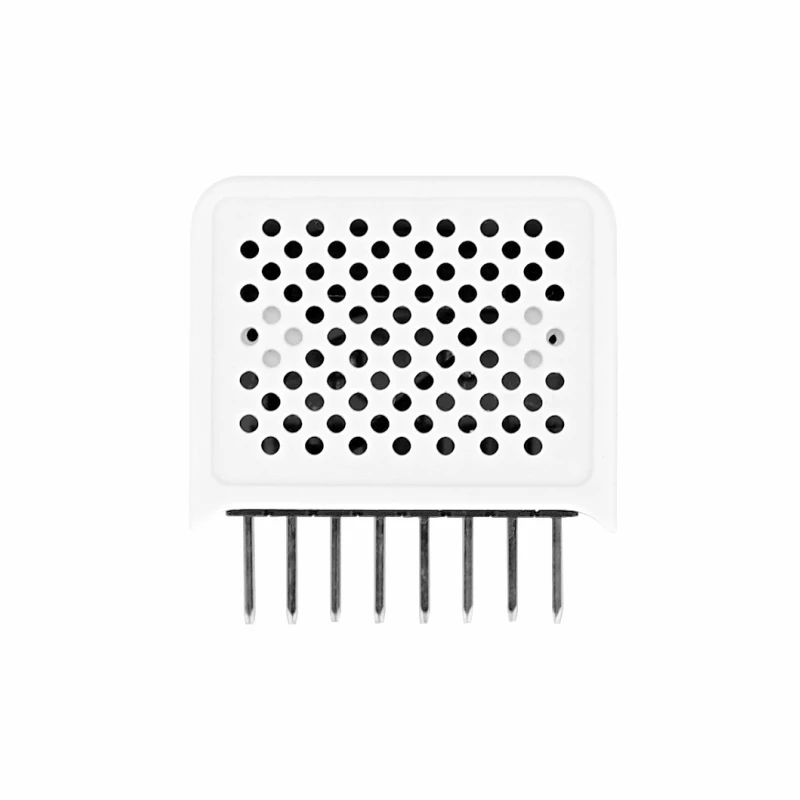

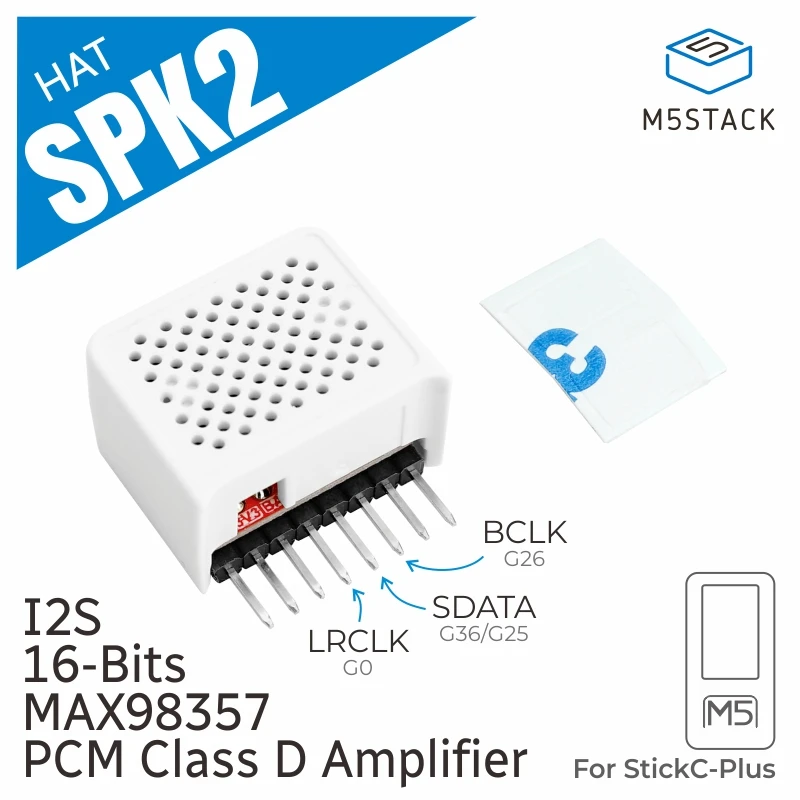

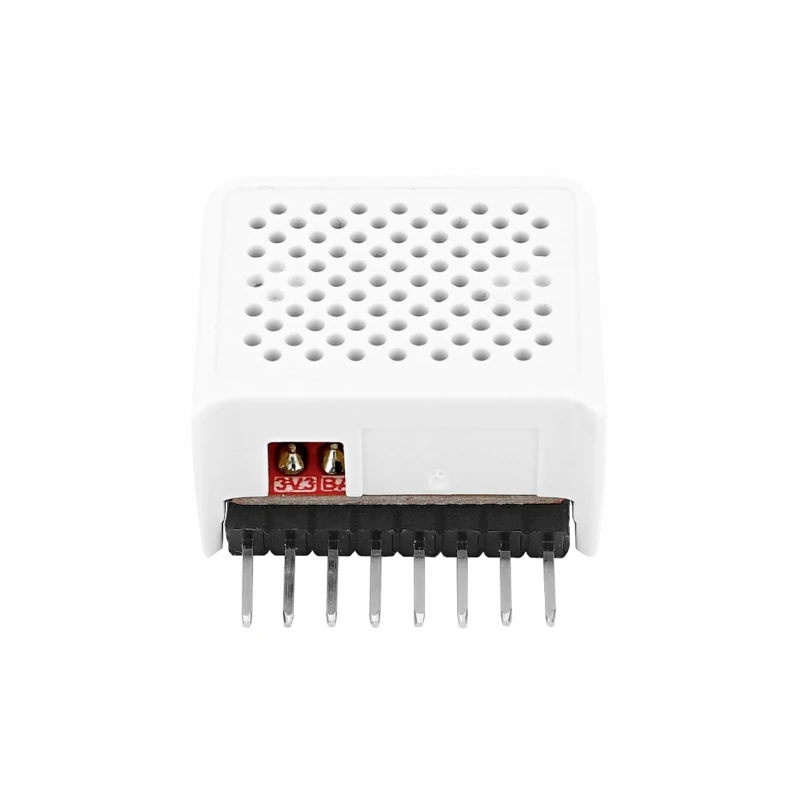

The 'HAT-SPK2 is a speaker with M5SticKC PLUS, built-in MAX98357 digital audio I2S amplifier IC and 1W speaker, supporting 16-bit, 32kHz to 192kHz sample rate audio input, built-in short circuit protection‘ and over-temperature protection, suitable for a variety of audio applications.
Features
-
HIGH-QUALITY AUDIO OUTPUT: SUPPORTS 16-BIT, 32KHZ TO 192KHZ SAMPLE RATE AUDIO INPUT
-
Multiple output modes: including mono and stereo, as well as audio input formats such as I2S, left-justified, and right-justified
-
Stability and reliability: Built-in short-circuit protection and over-temperature protection
-
Programming platforms: Arduino, uiflow

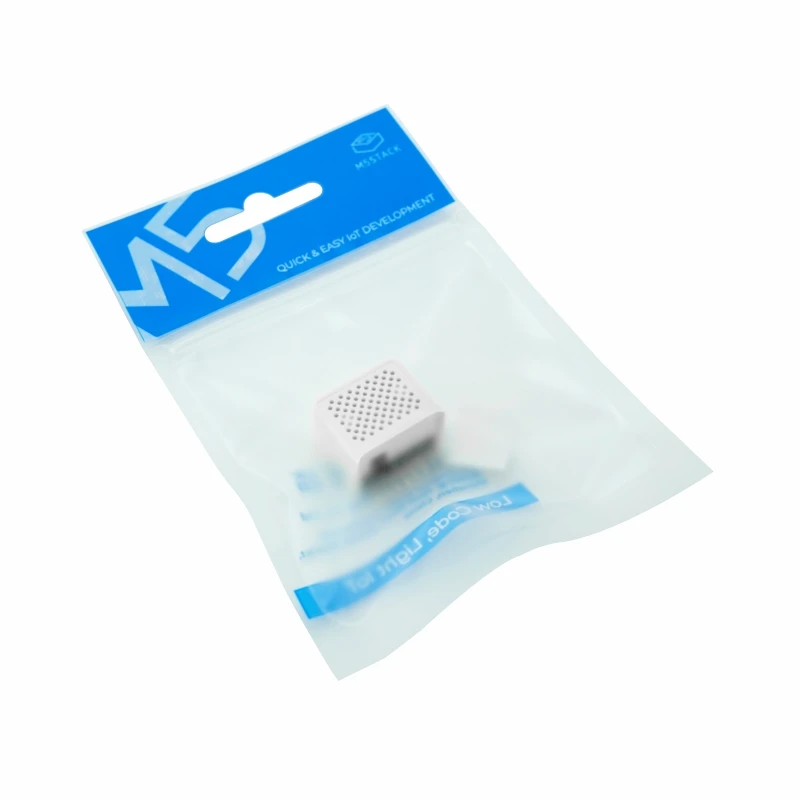

Includes
-
1x HAT-SPK2
Applications
-
Audio speakers
-
television set
-
Car audio
-
Smart speakers
Specification
|
Resources |
Parameters |
|
Power output |
Maximum 20W |
|
Signal-to-noise ratio |
103dB |
|
Distortion rate |
0.1% |
|
Supply voltage |
4.5v-5.5v |
|
Operating temperature range |
0-40°C |
|
Enter the audio format |
I2S, left-aligned, right-aligned |
|
Sample rate |
32kHz to 192kHz |
|
Control interface |
I2C?SPI?GPIO |
|
Product Size |
24mm × 18.6mm ×13.7mm |
|
Package Size |
136mm × 92mm ×13mm |
|
Product Weight |
4.6g |
|
Package Weight |
8.1g |
Related Link
Schematic
Module Size
Examples
Arduino
UIFlow
UIFlow Blocks
-
Play local WAV file
-
Play local WAV file
-
Play cloud WAV file
-
Play tone
-
Play tone
1. M5stack Oficial M5stickcplus Speaker 2 Hat Max98357 – tipo de Ajuste : Solto Ajuste
Não existe nenhuma avaliação ainda.
