Marvell-controlador Riser Sata Pcie Chip 88se9230 Pci Express 4x Suporte de Perfil Baixo Sata
Original price was: R$ 281,53.R$ 239,29Current price is: R$ 239,29.
DÚVIDAS?
Envie um email para:
Cartões Para Acréscimos
Opção de Compra e tempo de entrega
Ficha técnica do produto
Características | Especificações |
---|---|
Número do Modelo | Io3192 |
Embalagem | SIM |
Tipo de Interface | PCI Express, other |
Nome da Marca | H1111z |
Origem | CN (origem) |
Tipo | M.2 SSD Para Pci-e |
Feature 1 | Raid Controller |
Feature 2 | Sata Raid |
Feature 3 | Pcie Raid |
Feature 4 | Raid Controller Sata |
Feature 5 | Pcie Sata Raid |
Feature 6 | Sata Raid Card |
Feature 7 | Sata Raid PCI Express |
Feature 8 | Raid |
Feature 9 | Marvell 88se9230 Chip |
Feature 10 | With LOW Profile Bracket |
Marvell 88SE9230 Chip SATA/PCIE Raid Controlador SATA PCIE SATA Raid Cartão PCI-E SATA Raid PCI Express 4X com Suporte de Perfil Baixo
Sobre a descrição:
Especificação:
SATA III 4 portas PCI-e Versão 2, Cartão controlador de slot PCI-E x4, HyperDuo, RAID por software
Portas: 4 Portas SATA 6 Gb/s internas
Compatível com a especificação PCI-Express v2.0 e retrocompatível com PCI-Express v1.0
Compatível com Serial ATA Especificação 3.0
A interface PCI-Express x4 (para modelos selecionados) é compatível com slots PCI-Express x4, x8 e x16
Suporta velocidades de comunicação de 6,0 Gbps, 3,0 Gbps e 1,5 Gbps
Tomada quente e Hot Swap
Suporta Native Command Queue (NCQ)
Suporta Port Multiplier FIS Based Switching ou Command Based Switching
Compatível com discos rígidos SATA 6G, 3G e 1.5G
Função RAID:
RAID 0-Striping (Tamanho da listra: 32K, 64K)
RAID 1-Disk Espelhamento
RAID 10-Stripe of Mirrors (Stripe Size: 32K, 64K)
HyoperDuo Safe (Proteção Espelhado) ou Capacidade-Custo (Otimizado)
Nota: RAID não suportado em PM
Exigência do software:
Windows XP/Vista/7/8/10, Windows Server 2003, 2008, 2008 R2, Linux 2.6.x e Acima (driver de dispositivos AHCI é um recurso interno)
Você vai receber:
1 x PCI Express para 4 portas SATA3.0 Raid Controller

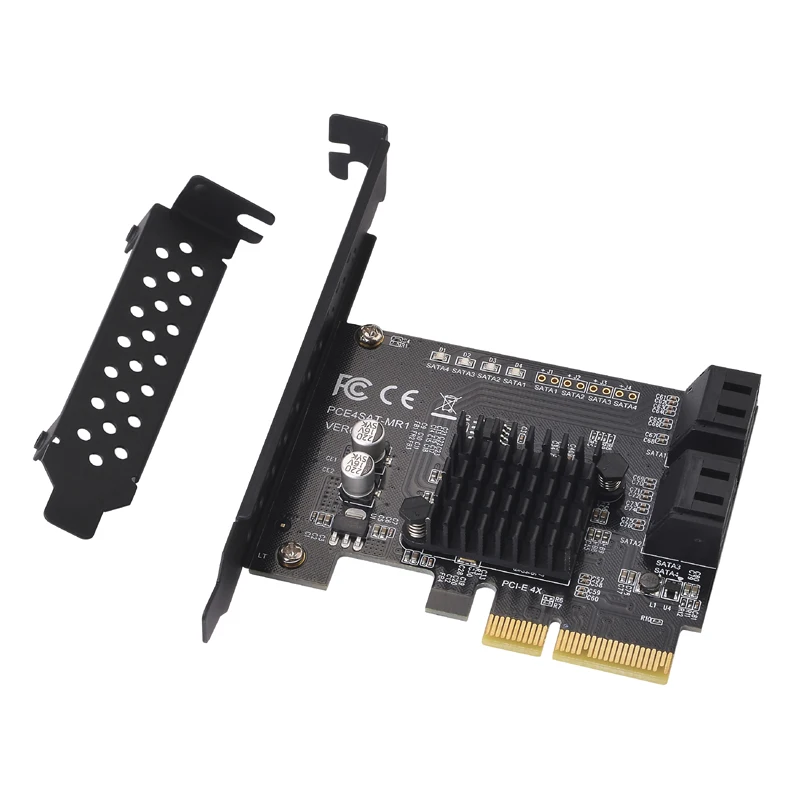

1 x Suporte do perfil baixo
1 x CD do motorista
-

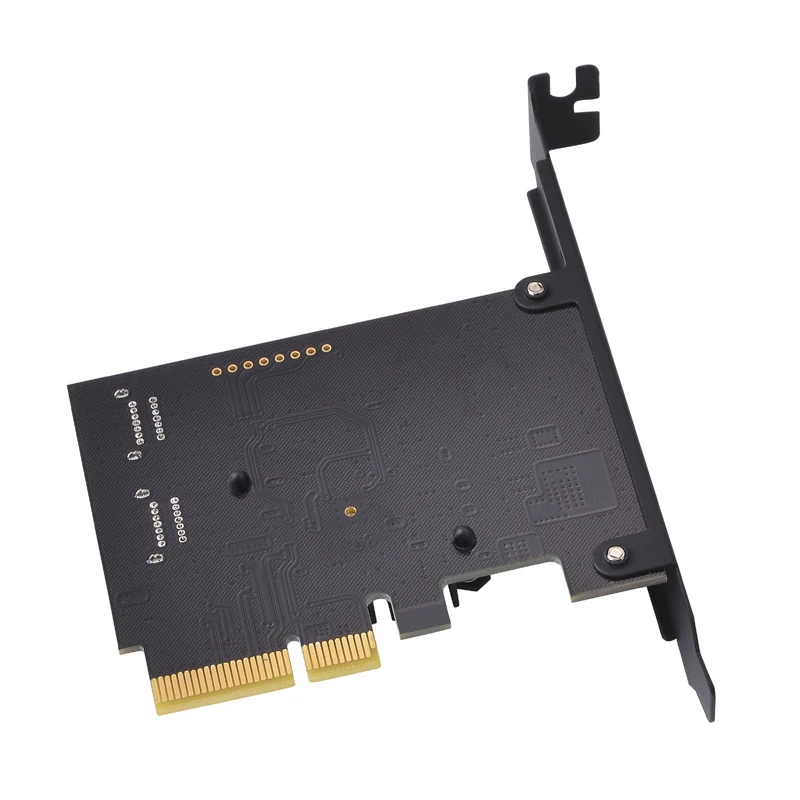

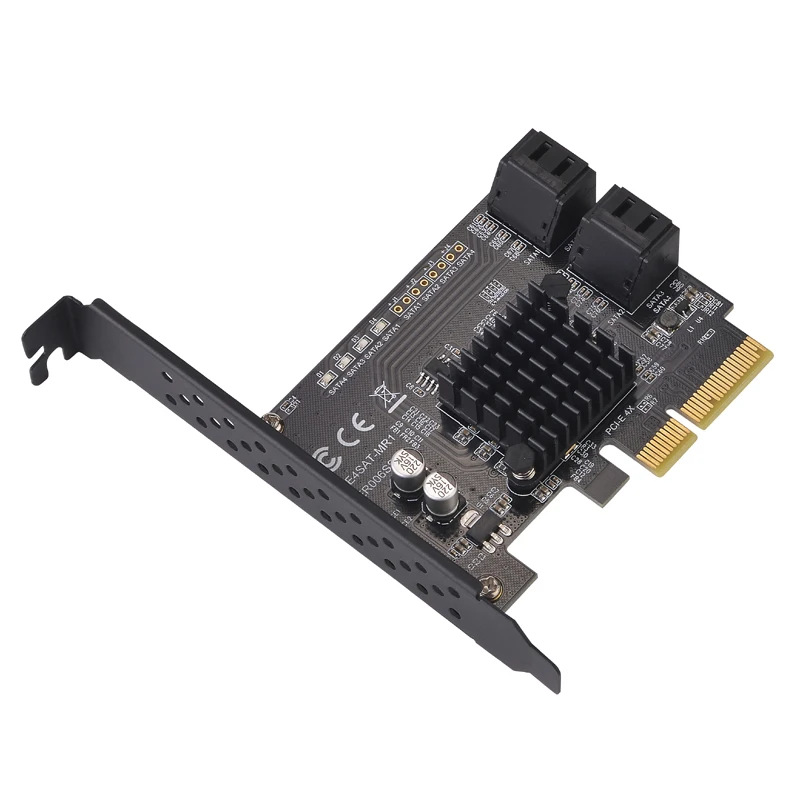

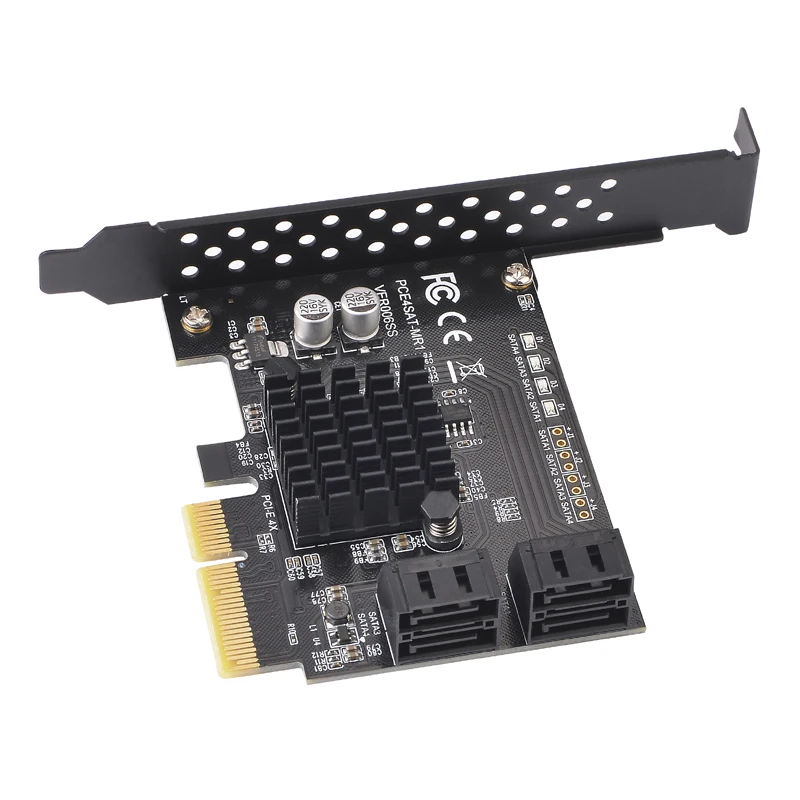

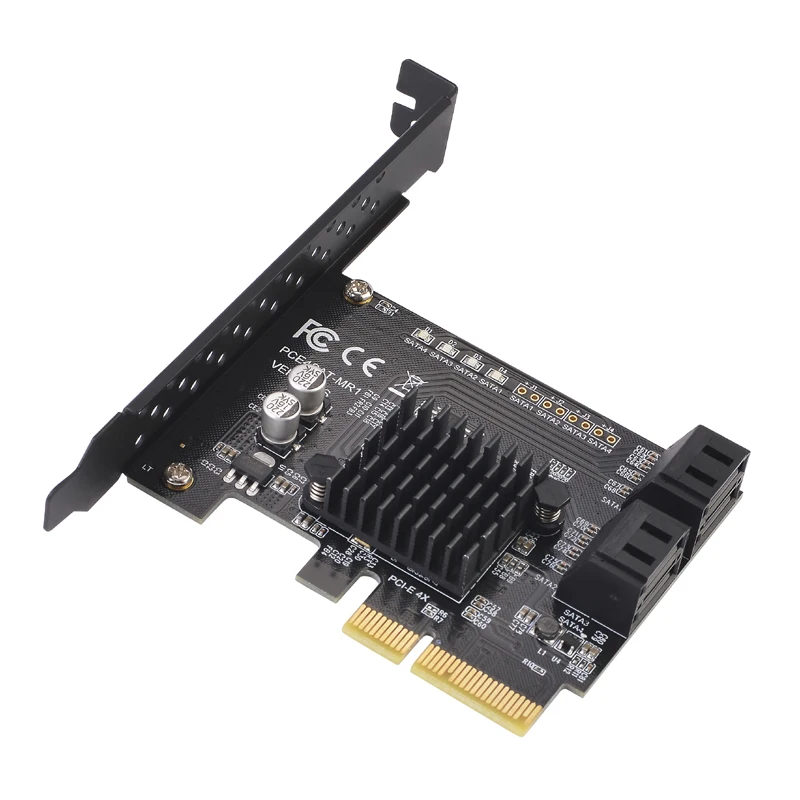

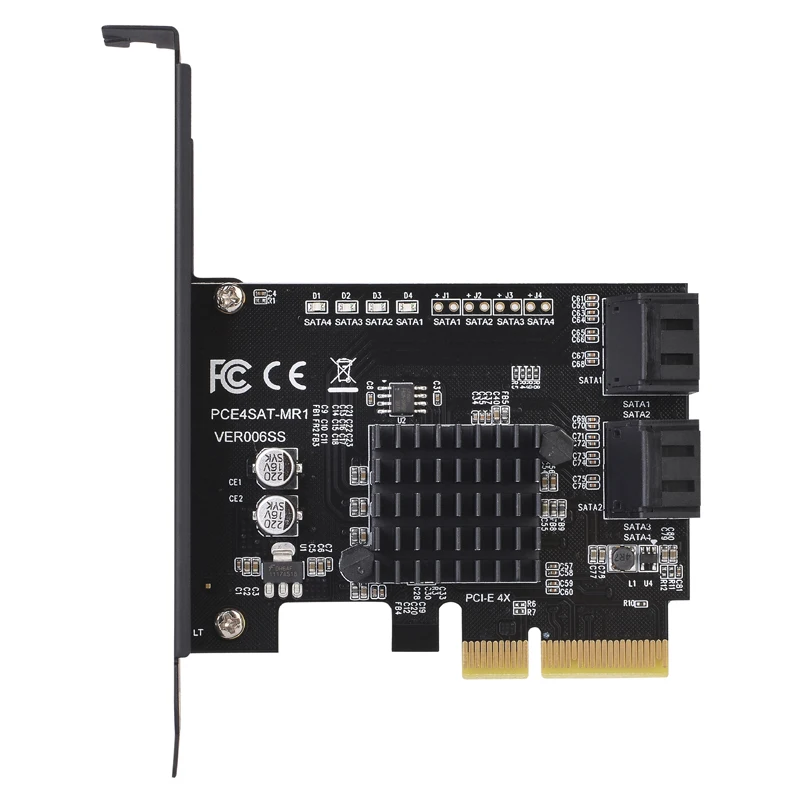

Por favor verifique fotos para mais detalhes.
