Máquina Visão Mipi Csi2 Câmera Mv-mipi-imx178m para Todos os Raspberry pi e Jetson nx e Nano 6.0mp

Opção de Compra e tempo de entrega

Brief

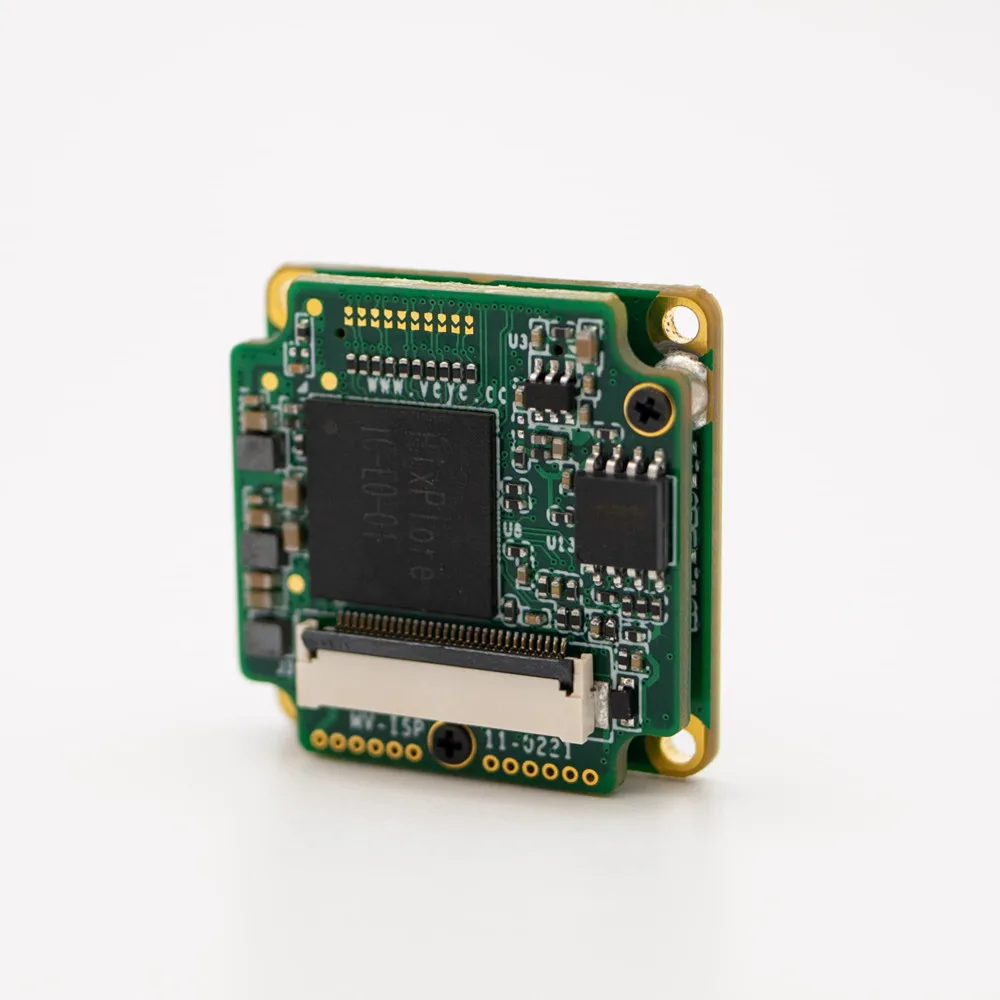

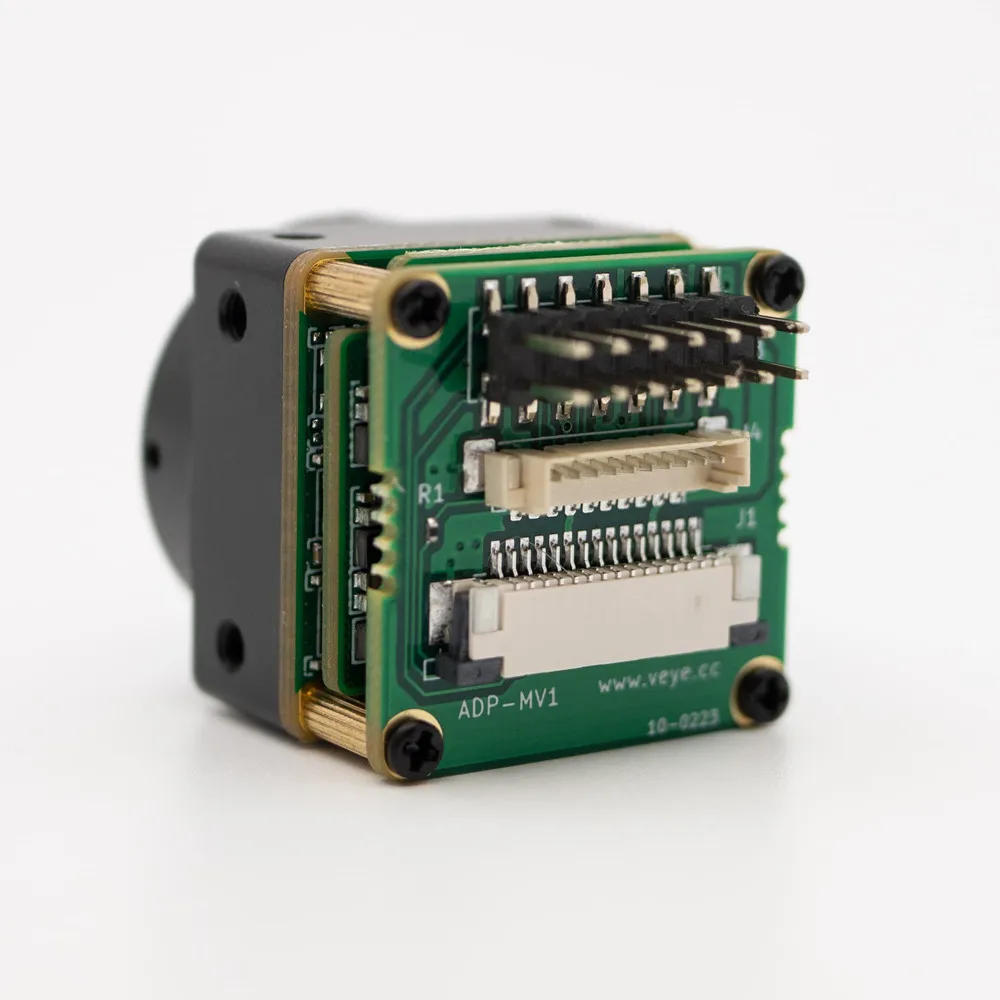

MV-MIPI-IMX178M is a 6 million MONO industrial camera with MIPI interface.

This camera has a small size (29*29mm) and rich functions, so it is suitable for integration as an image acquisition component.

Features

• 1/1.8'' 6M Pixel SONY STARVIS CMOS SENSOR

• MIPI CSI-2 Interface

• Mono-8Mono-10,Mono-12 Data Format

• Video streaming mode(Free Running),Trigger mode,High-speed continuous trigger mode

• Hardware and Software trigger source

• Support trigger frame number, interval, delay, trigger filter function

• Strobe synchronization

• ROI

• USER Output

• Flexible frame rate settings

Thechnical Details

CAD drawing

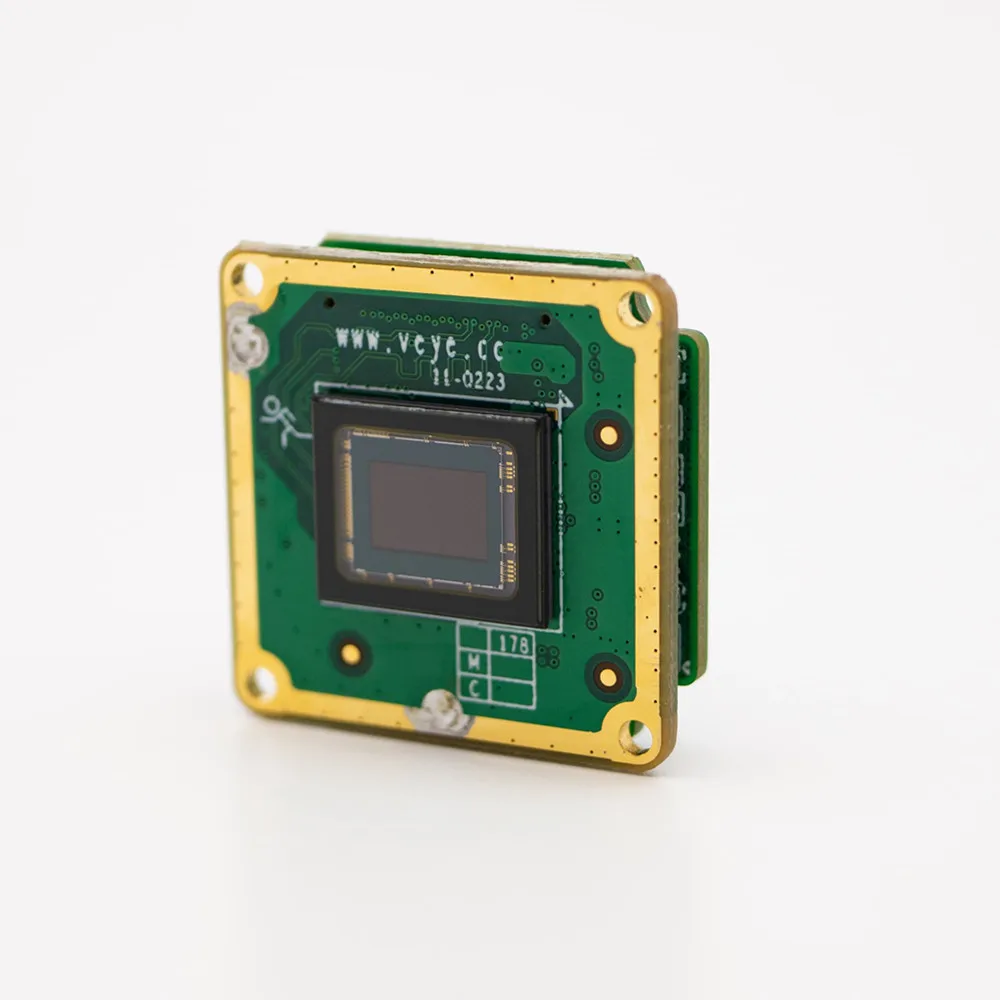

• Sensor Board

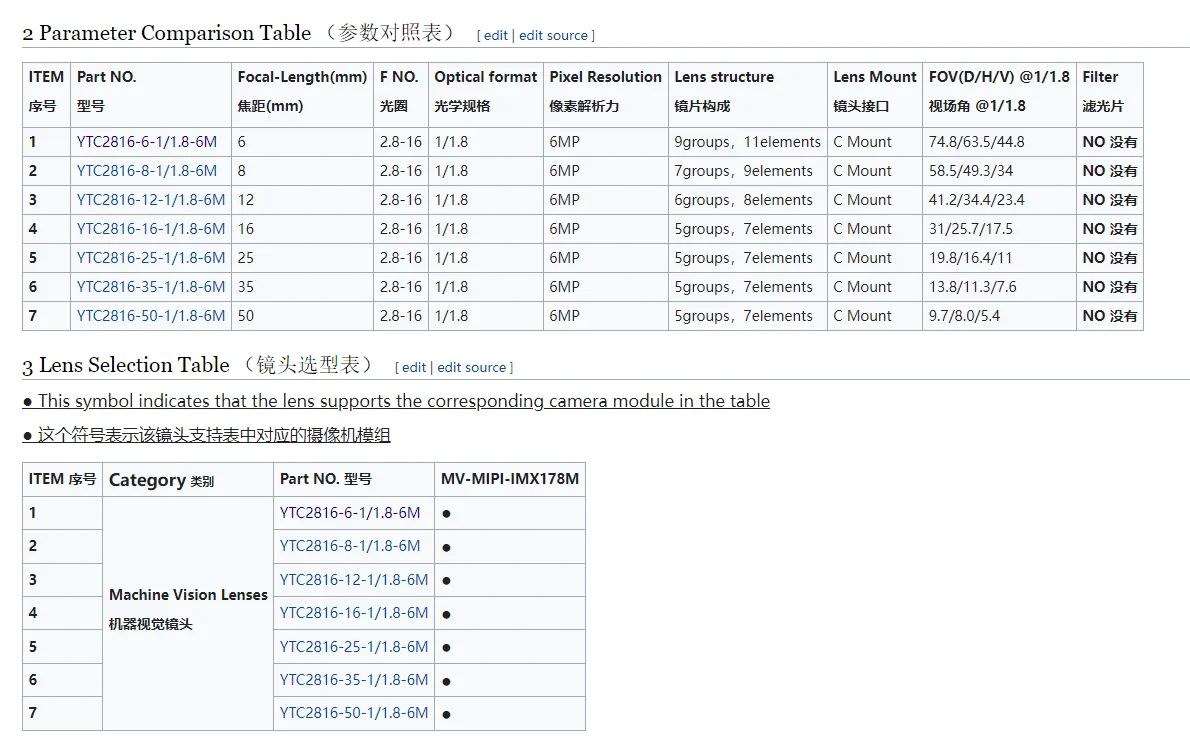

Lens select

http://wiki.veye.cc/index.php/Machine_Vision_Lenses

1. para Todos os Raspberry pi e Jetson nx e Nano – tipo de Acessório : Módulo de Câmera

Important references links

+ wiki MV-MIPI-IMX178M
http://wiki.veye.cc/index.php/MV-MIPI-IMX178_Index

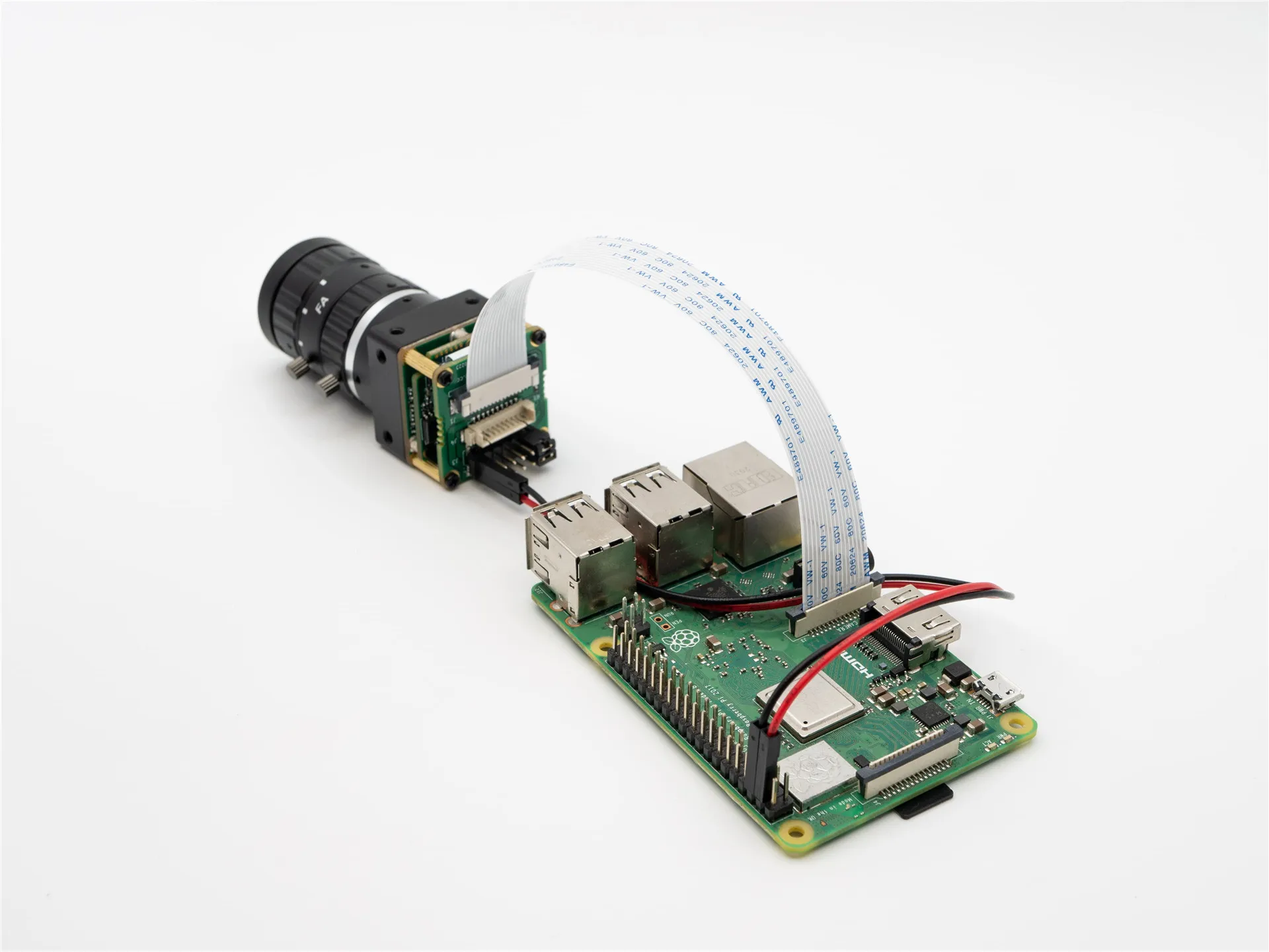

+ How to use MV series camera module on Raspberry Pi
http://wiki.veye.cc/index.php/Mv_series_camera_appnotes_4_rpi

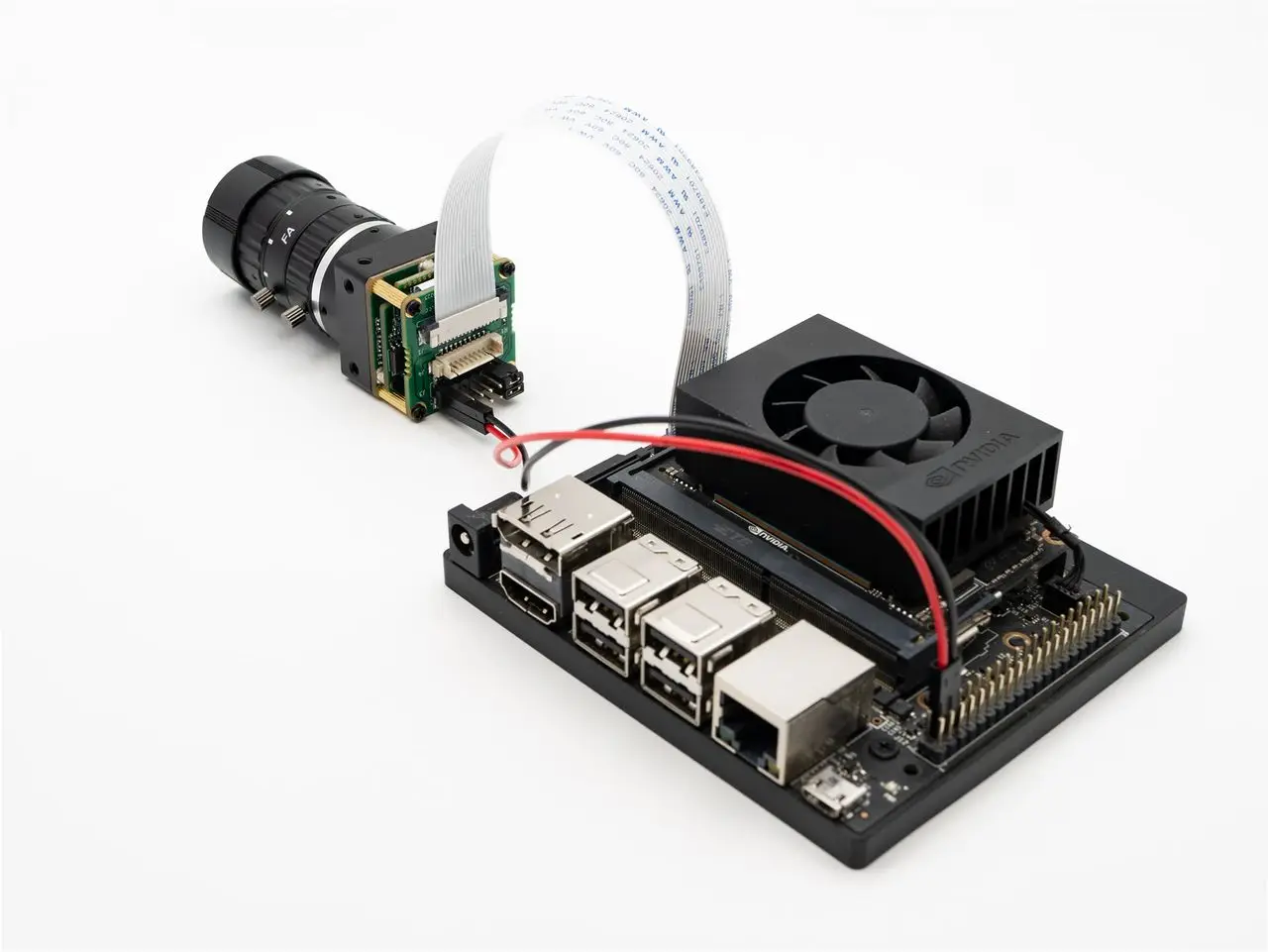

+ How to use MV series camera module on NVIDIA Jetson Platform
http://wiki.veye.cc/index.php/Mv_series_camera_appnotes_4_rpi

+ github
https://github.com/veyeimaging

+ website
www.veye.cc

+ Forum
http://forum.veye.cc

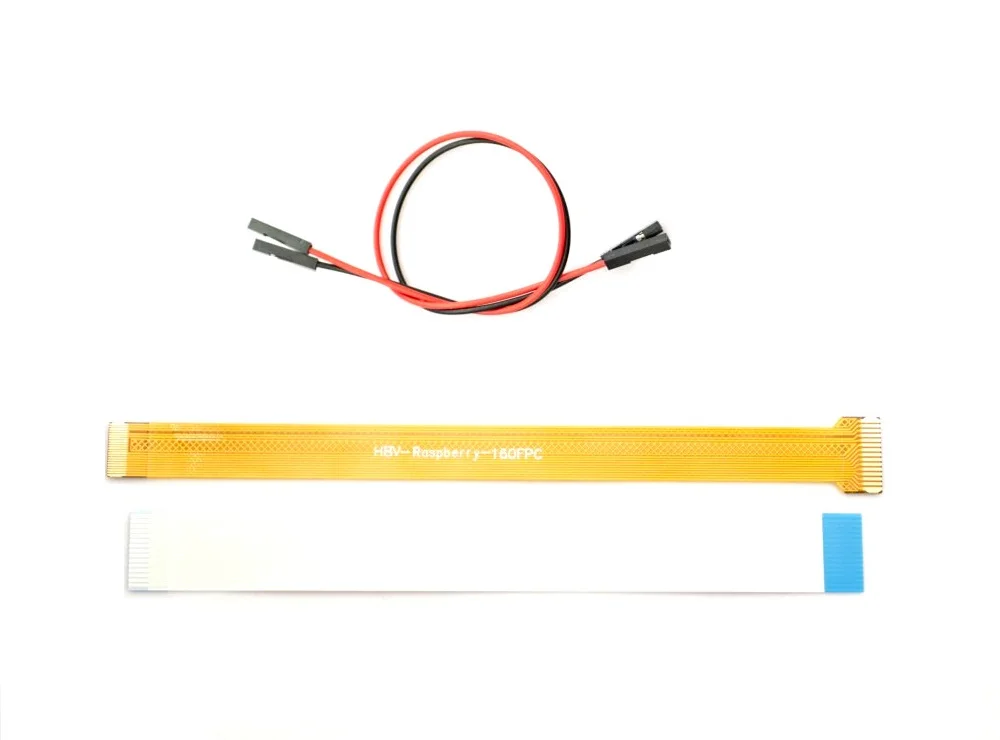

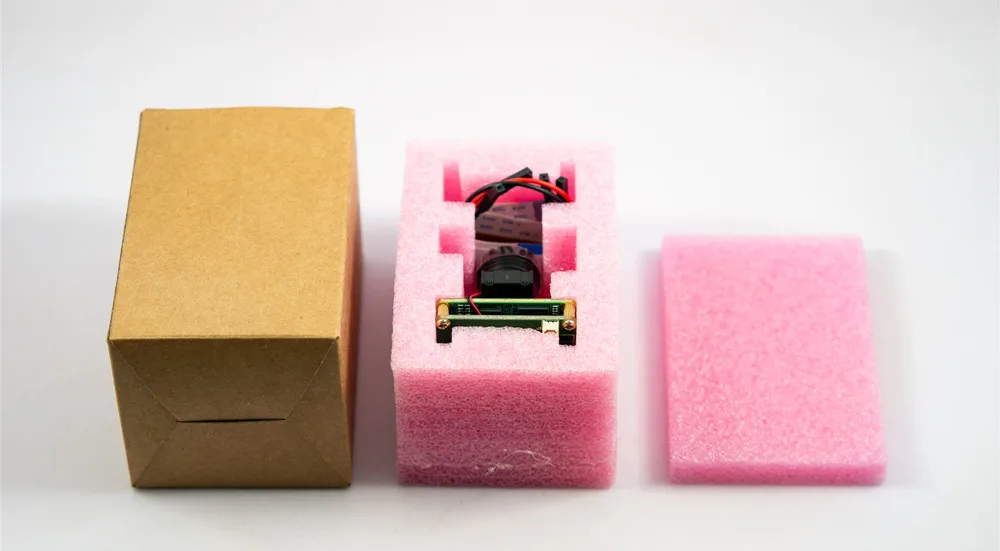

Packaging and accessories

We provide all the needed accessories and install them according to your purchase options and reliable packaging. Below is the schematic.

2. Weddings & Events – Nome da Marca : Pixplore

3. Home & Garden – Compatível com : Raspberry pi Jetson Nano nx

FAQ

Q:Why does the tracking system show no update after I've received my tracking number

A:Usually China Post will update the tracking information to www.17track.net after 8-10 days.

Q:Should I bear the shipping cost

A:We will provide “free shipping” by China Post. Alternatively, you could also pay for express shipping, and your package will arrive within 1 week.

Q:Where can I check the tracking information for my package

A:You can check your tracking information from www.17track.net. The website supports multiple-languages.

Q:How long will it take for my package to arrive

A:You can refer to this detailed data-table. Please note that the statistical data is only for reference, the specific time is subject to dynamically changing conditions.

Q:What should we do when we encounter technical problems

A:You can submit your questions directly to our forum, and our engineers will reply to you as soon as possible.
http://ask.veye.cc

Q:Where can I find ways to use the camera module

A:For software usage or product details, please visit http://wiki.veye.cc/

Q:Do you support product customization

A:Yes,please contact [email protected]
