Lerdge z Placa Impressora 3d 32bit para Placa de Controle Peças Motherboard com Stm32 Braço 32 Bit Mainboard Tmc2208 Lv8729 Tmc2209
R$ 119,37
DÚVIDAS?
Envie um email para:
Produtos relacionados
Impressoras e Scanners 3D
Vídeo de Demonstração do Produto
Opção de Compra e tempo de entrega
Ficha técnica do produto
| Características | Especificações |
|---|---|
| Número do Modelo | Lerdge Z |
| Tipo de Item | Placa-mãe |
| Nome da Marca | Lerdge |
| Origem | CN (origem) |
| Nodelo Ref. | Lerdge-z 3D Printer Board |
| Color | Black |
| Application | 3D Printing |
| Microprocessor | Stm32 F4 |
| Auto-leveling | Support |
| Input Voltage | 8v~30v |
| Mounting Hole Size | 90mm*70mm |
| Color Touch Screen Size | 3.5" |
| Nodelo Ref. | Lerdge-z |

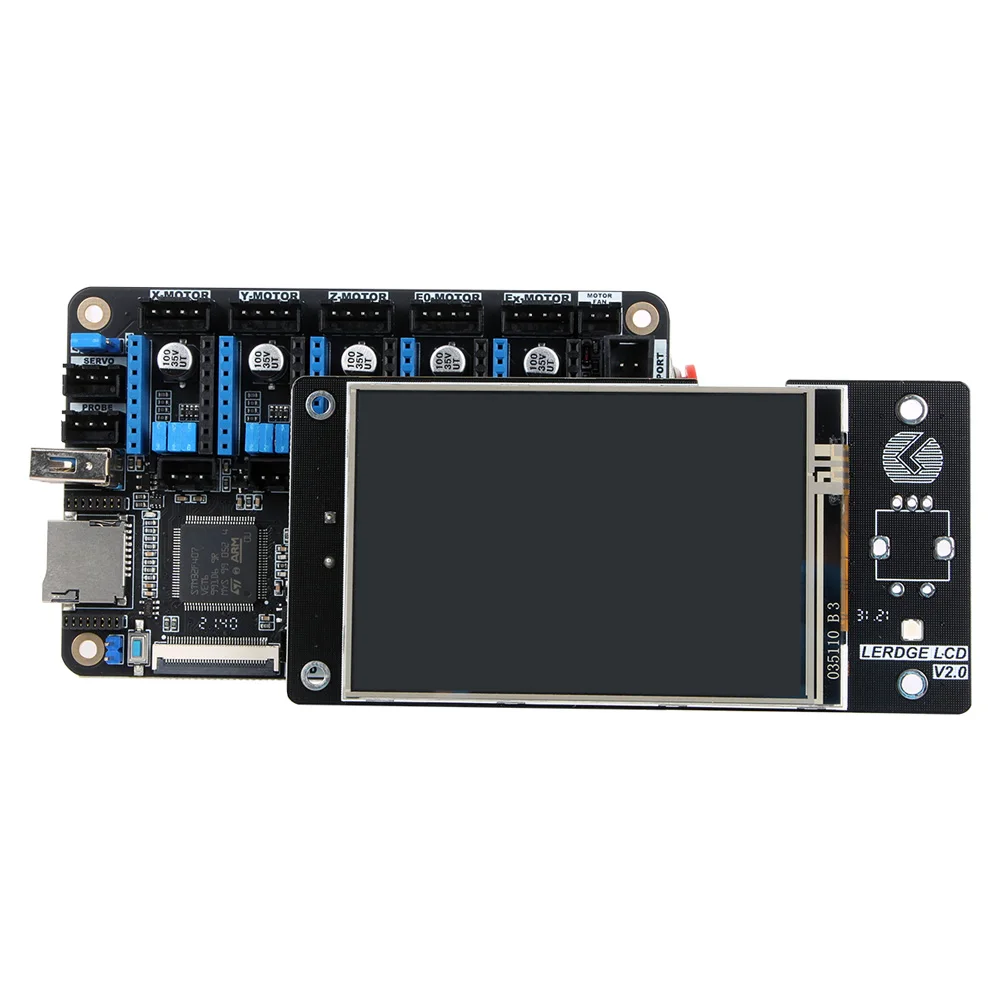

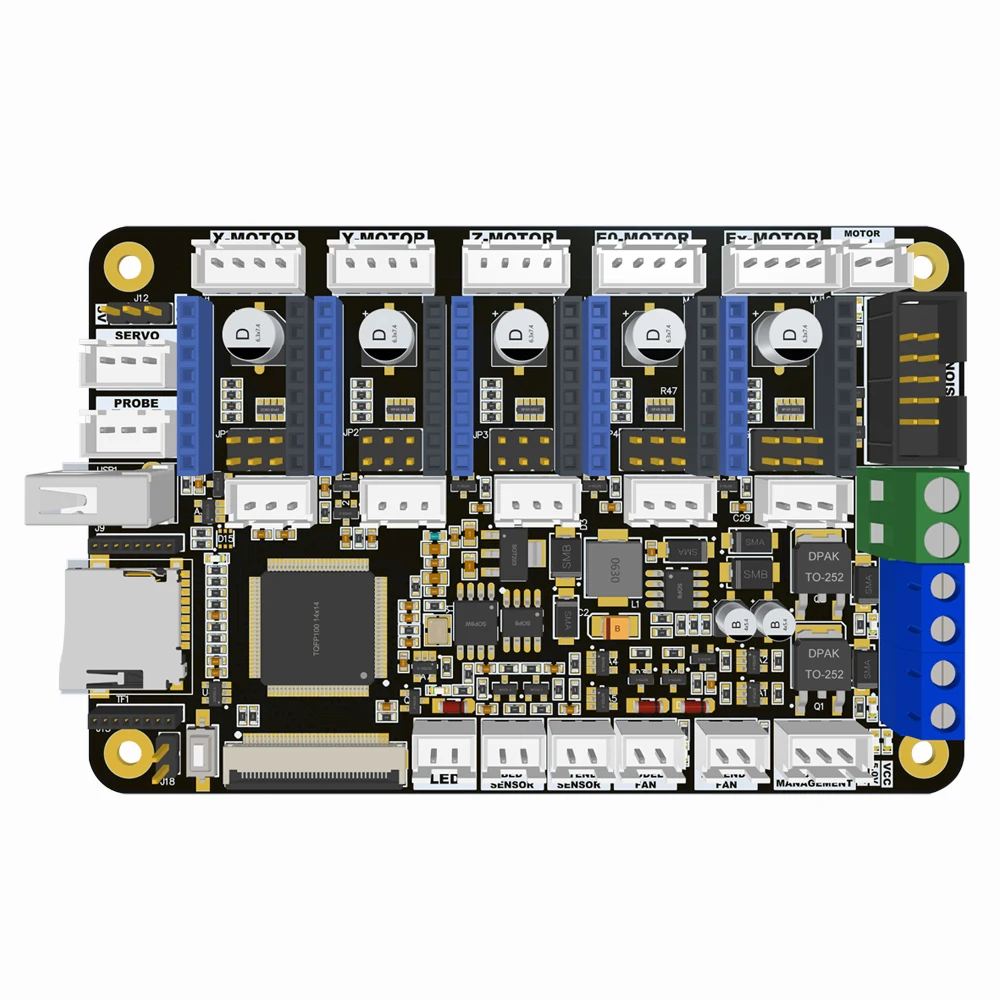

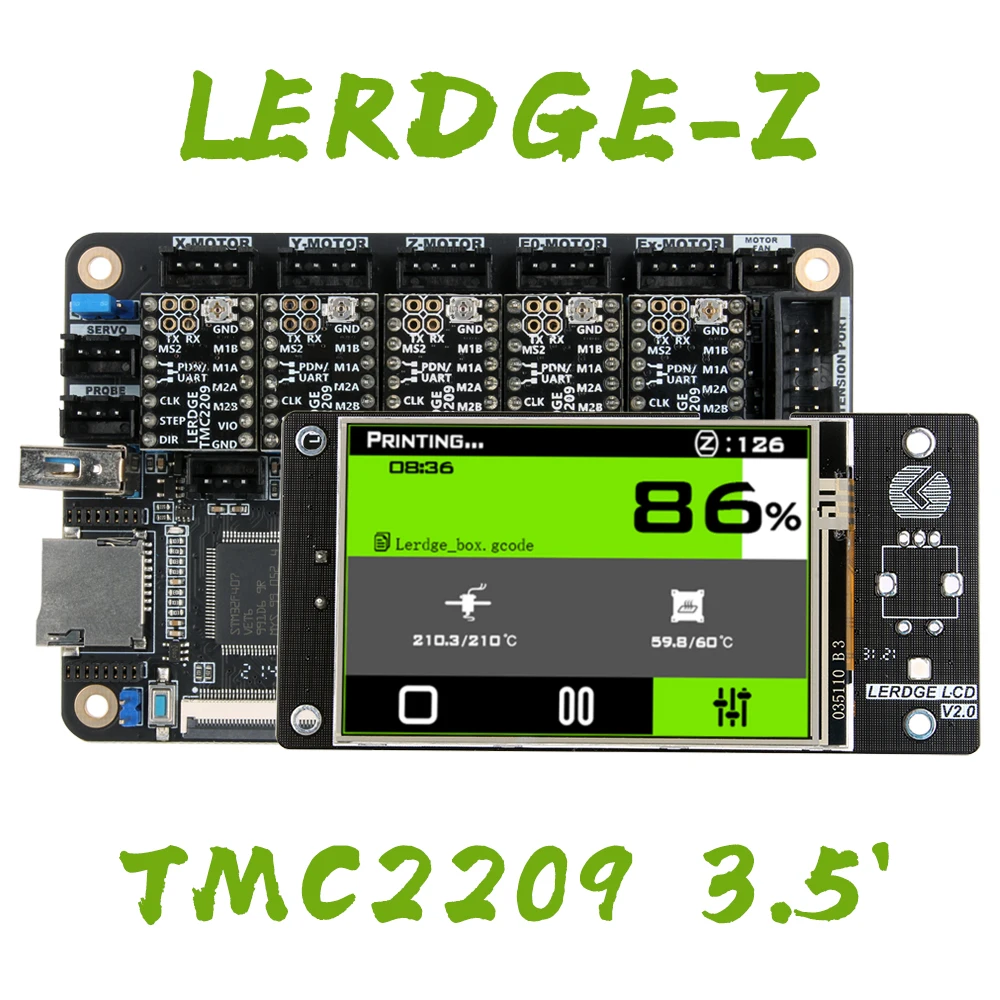

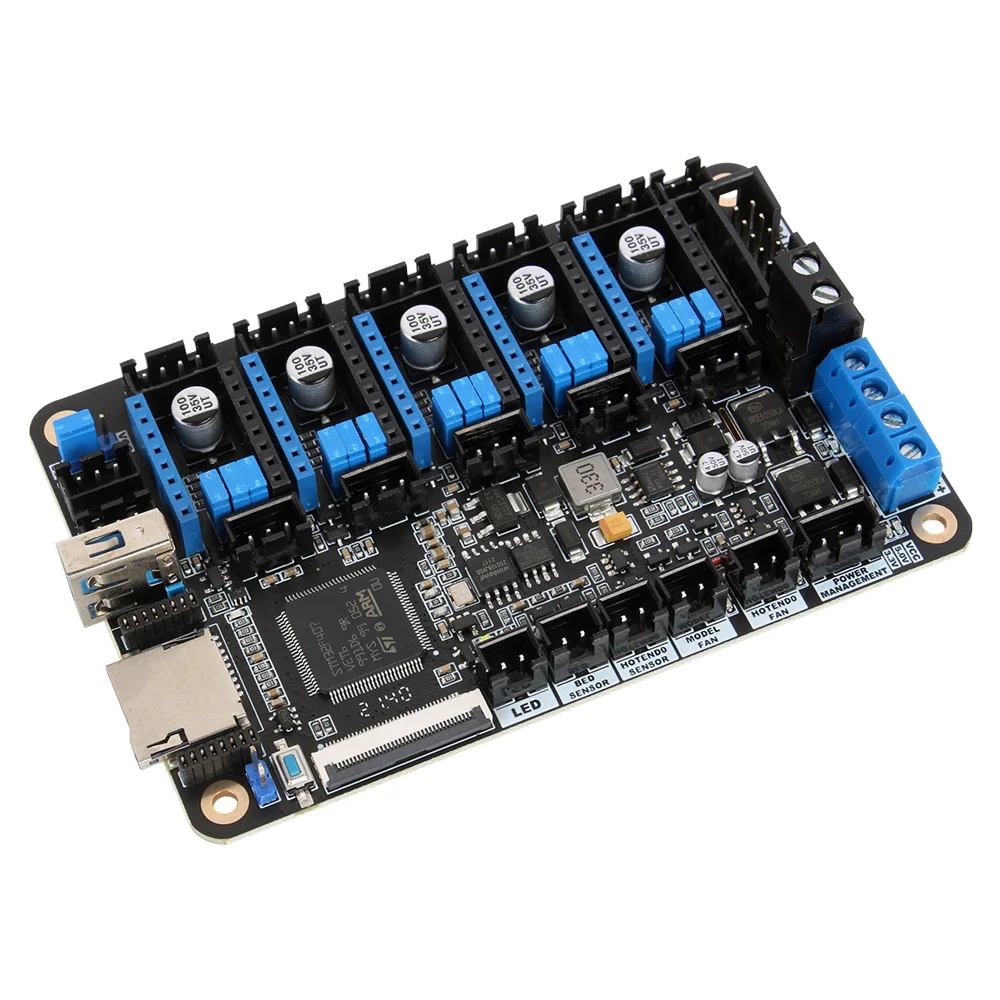

LERDGE-Z 3D Printer Board 32bit for control board parts motherboard with STM32 ARM 32 Bit Mainboard tmc2208 lv8729 TMC2209
Brand:LERDGE
Model:LERDGE-Z 3D Printer Board
Color:Black
Application:3D printing
Microprocessor:STM32 F4
Auto-leveling:Support
Input voltage:8V~30V
Mounting Hole Size:90mm*70mm
Color touch screen size:3.5&
Microprocessor: 32 Bit 168MHz CPU ARM Cortex-M4
Master Chip: STM32F417VET6
Touch screen size: 3.5 inch IPS full view
Support Firmware: Only LERDGE
Extruder: 1in1,2in1 extrusion
Support Driver Quantity: 5PCS Stepper Motor Driver
Fan Interface: 2
XYZE Axis: Ex axis customizable XYZE to double axis
Support Auto Bed Leveling Sensor: BLTouch Sensor
Support Display: LERDGE 3.5 inch touch screen
StepperMotor Driver: TMC2208/TMC2209/TMC2225/TMC2226/A4988/DRV8825
Power Input: DC 12 – DC 24V
Usage: 3D Printer Board

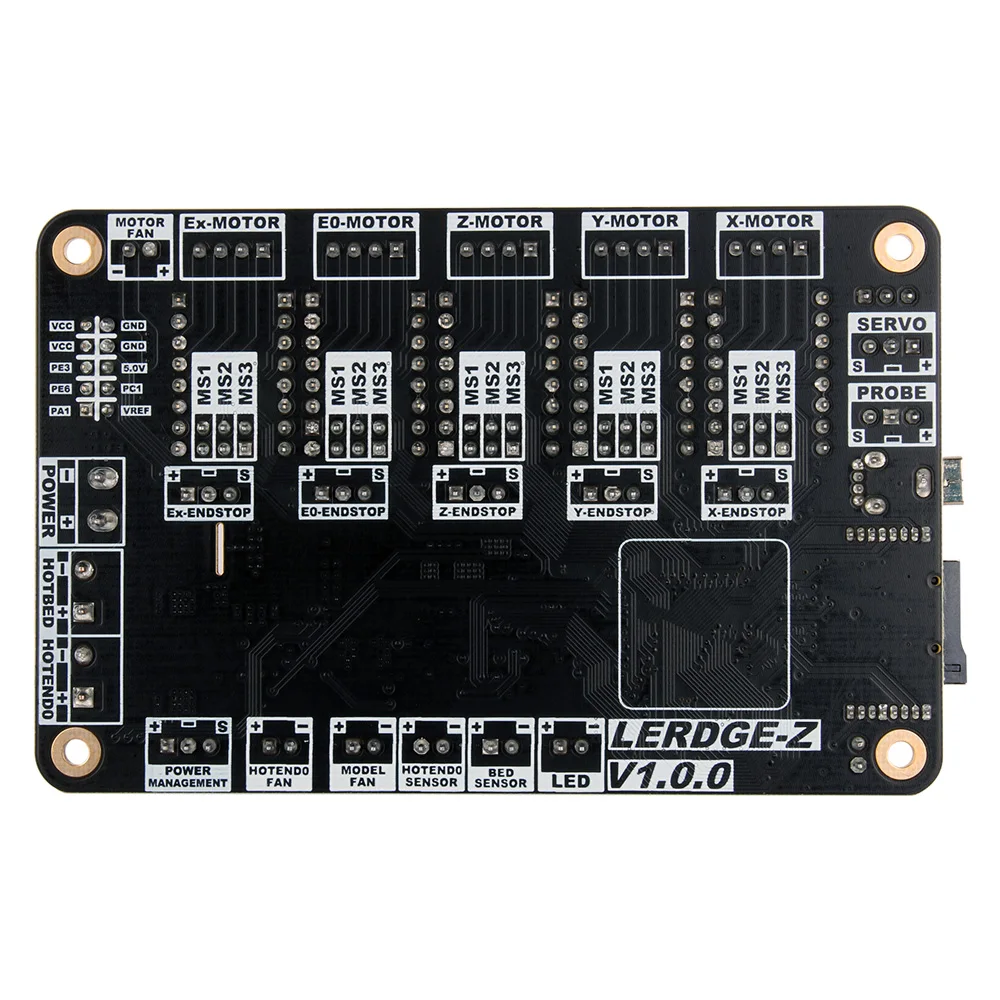

Motor drive interface: X, Y, Z, E0, Ex
Temperature sensor interface: T0, 100K NTC(thermal resistance)
Support file format: g-code
Support machine structure: XYZ, delta, kossel, Ultimaker, corexy
Recommended software: PrusaSlicer, Cura, Simplify3D, pronterface, Repetier-host, Makerware
Notice: LERDGE-X motherboard has been upgraded to LERDGE-Z motherboard
The LERDGE-X motherboard is the most basic motherboard. Due to the user’s more functional requirements, the LERDGE-X motherboard has been upgraded to the LERDGE-Z motherboard, adding an EX axis (changes to a 5-axis), which can be customized as XYZE, and some intelligence The breathing light recognizes the status of the machine and other functions.
The LERDGE-K motherboard is a high-performance motherboard at present. Because LERDGE-K may be upgraded in the future, the upgraded Leji-Z is also to replace the LERDGE-K motherboard, which is between the LERDGE-X motherboard and the Leji-K motherboard. In the meantime, only the functions that are not commonly used on the LERDGE-K motherboard have been removed, but the price has been reduced.
In a word: Customers who want to buy the LERDGE-X motherboard or the LERDGE-K motherboard directly buy the LERDGE-Z motherboard, which is a combination of the two.
Only Z Board:(NO DRIVERS,NO3.5-INCH TOUCH SCREEN )
If you already have a driver modules, you already have a 3.5-inch touch screen, you can buy Only Z Board.
Tip: The Lerdge Z motherboard have to match with our 3.5-inch touch screen to be used.
Note: The Lerdge-Z motherboard does not support TMC series UART/SPI mode
The comparison between Lerdge Z and Lerdge K, Lerdge X is as follows:
Compared to other boards:
Automatic Leveling:
Lerdge Z has a patented automatic leveling solution, the number of automatic leveling points can reach up to 1024 platform sampling points,which realize efficiently the adjustment of the platform and make the printing quality better. Regarding the automatic leveling module, we recommend this pressure film sensor.
