Creality V4.2.7 Atualização Placa Silenciosa Placa-mãe Tmc2225 Driver Marlin 2.0.1 32bits Mudo Mainboard para Ender Série Impressora 3d
Original price was: R$ 340,74.R$ 234,68Current price is: R$ 234,68.
DÚVIDAS?
Envie um email para:
Produtos relacionados
Impressoras e Scanners 3D
Opção de Compra e tempo de entrega
Ficha técnica do produto
| Características | Especificações |
|---|---|
| Número do Modelo | V4.2.7 Motherboard |
| Tipo de Item | Placa-mãe |
| Nome da Marca | Creality |
| Origem | CN (origem) |
| Voltage | 24V Input/12v Output |
| Firmware | Based ON Marlin 2.0.1 |
| Motor Driver Stepper | Tmc2225 |
| Applicable FOR | FOR Ender 3/5 Series 3D Printers |
Creality V4.2.7 Upgrade Silent Board Motherboard with TMC2225 Driver Marlin 2.0.1
Mute Mainboard for Ender 3 Series 3D Printers
Specifications:
Version: V4.2.7
Voltage: 24V Input/12V Output
Firmware: Based on Marlin 2.0.1
Motor Driver Stepper: TMC2225
Bootloader installed (ISP/USB Arduino)
TMC2225 drivers.Marlin 2.0.1 and bootloader installed.
Support 24V input voltage.With USB Port, can be Worked With E/Z/Y/X Axis Motor.
Features:
1. Super Quiet:The V4.2.7 mainboard comes with a low decibel and silent TMC2225 driver, which makes the sound of the printer running below 50 dB. Support BL-Touch auto-leveling and filament sensor
2. Easy Installation: The firmware for Ender 3 /Ender 3 Pro / Ender 5 comes pre-installed NOW! You just plug them in and start printing!
3. How to Flash the Firmware: Prepare an SD card less than 8GB, format it first, and then save the firmware in the SD card, making sure there is only firmware reserved in this card. Then plug the SD card into the card slot, turn on the printer and wait for around 10s. when the progress bar and interface appear, the firmware has been successfully updated.
4. More Safer:Thermal runaway protection is enabled, if the temperature rises out of control, the printer will stop heating and halt automatically. The Board is Optimized by Circuit, effectively solving the heating problem.

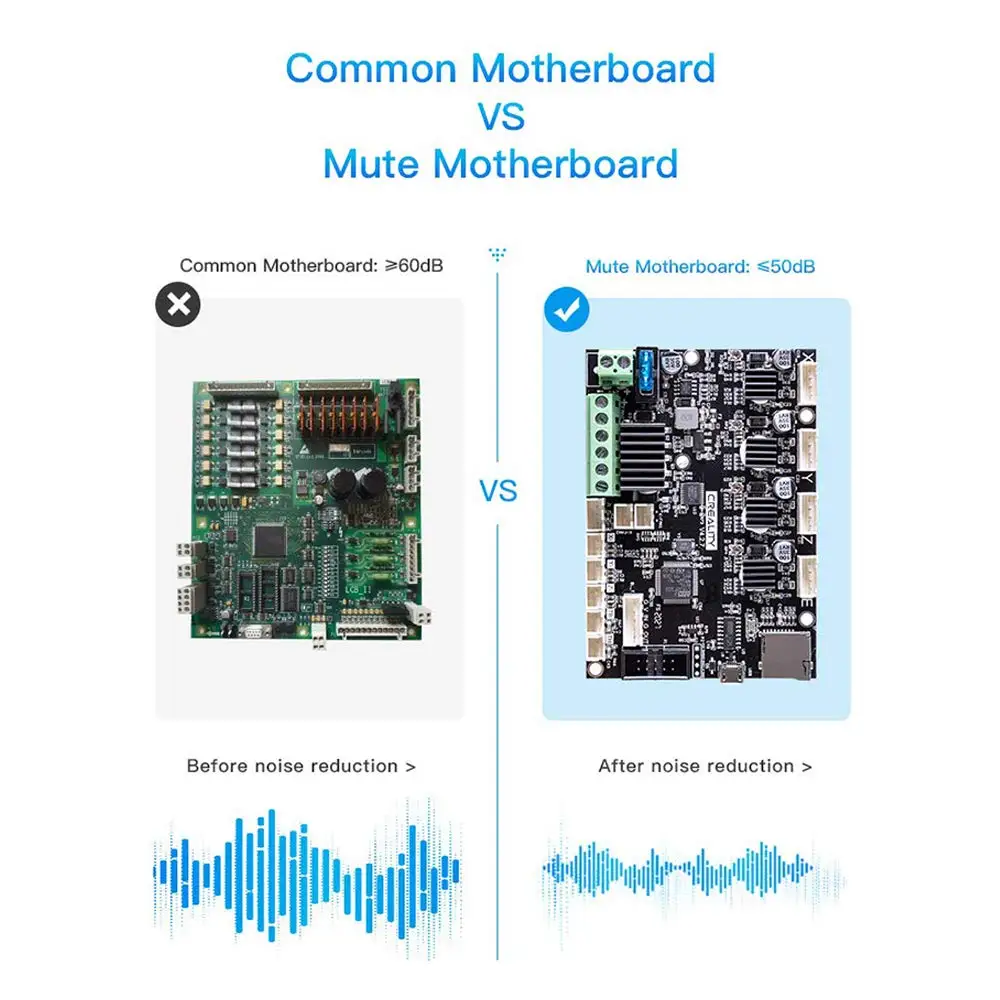

Super Silent Driver
1. Creality 32 bit silent motherboard, with stronger anti-interference, faster and more stable motion performance, silent printing and low decibel operation, After using silent mainboard, the machine is always running at low decibels (<50dB).
2. When you are in a quiet environment, you can safely and boldly perform 3D printing operations without apologizing, and you never need to worry about noise disturbing others.
3. Creality V4.2.7 32-bit silent motherboard printing smoother and the running speed is obviously accelerated. Thermal Runaway Protection Optimized circuit, enabling thermal runaway protection to effectively solve heating problems.

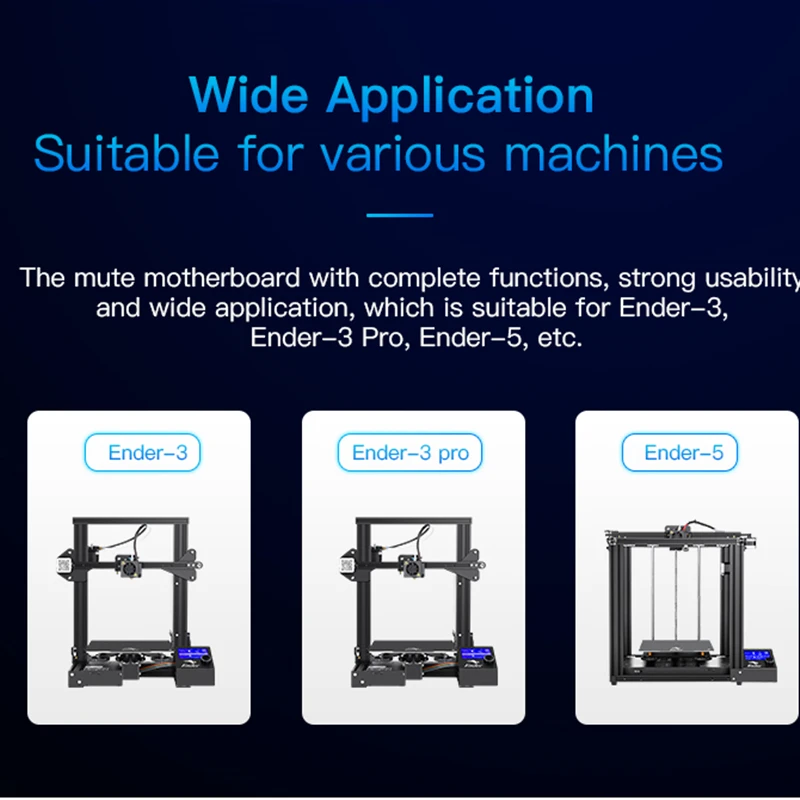

4. The design of the Ender-3 pro silent motherboard extends the application of 3D printers, starting from ordinary manufacturing to indoor places such as homes, offices, research institutes, and especially some relatively quiet public areas.
Support BL Touch e CR Touch
1. Creality New Upgrade 32 bit V4.2.7 Silent Mainboard supports BL touch automatic leveling and filament break detection, we can
choose a silent motherboard for Ender series printer. These models are all DIY models, easy to install.
2. Update firmware: You can copy the firmware file to a formated SD card with no other files in it. Turn off the printer and unplug the
power cord. Insert the SD card e power cord, and turn on the printer. Wait 10s to complete the firmware updating process.
