Conjunto 15 315 17-350 19 417 22-490 23.6540 mm Led Backlight Lâmpadas Faixa de Luz Lcd Universal pc Acessórios Placa do Módulo 1

Product introduction:

New original lamp beads, pure color temperature;

A new scheme, LED cross-flow booster, supports 10-28V ultra-wide voltage input;

Three pieces in one group, can be tailored freely! 15-24 inch universal omnipotence type;

Adjustable brightness

This lamp has 3 beads and 1 group. It can be cut freely according to actual requirements. For example, we usually use about 420 mm for 19 wide screen. Then we only need to cut it to the right length according to the rule of 3 beads and 1 group. It’s very convenient.

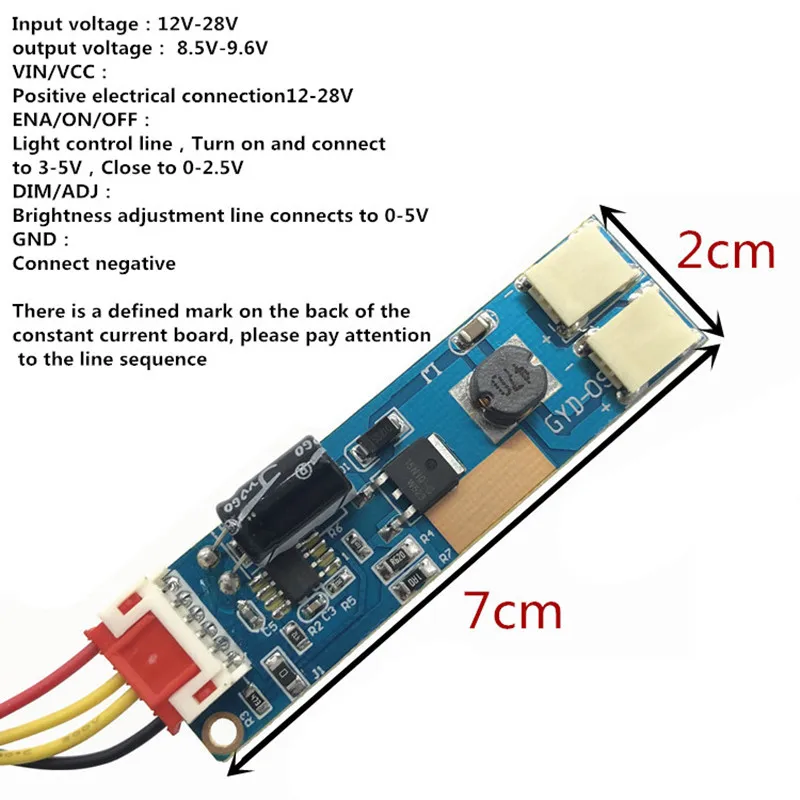

Cross-flow plate specification: 7cm*2cm (long*wide) constant current plate, also known as booster plate

Specification of lamp bar: 540mm*4mm*2mm (length*width*height) (84 beads/strip)

Input Voltage: 10V~28V Wide Voltage

Characteristic:

This product is a special lamp bar for original display. It has high brightness and can’t be directly viewed.

LED particles compact, high-density arrangement imported high-brightness LED patches

Long life, designed for display, with a life of 500,00 hours

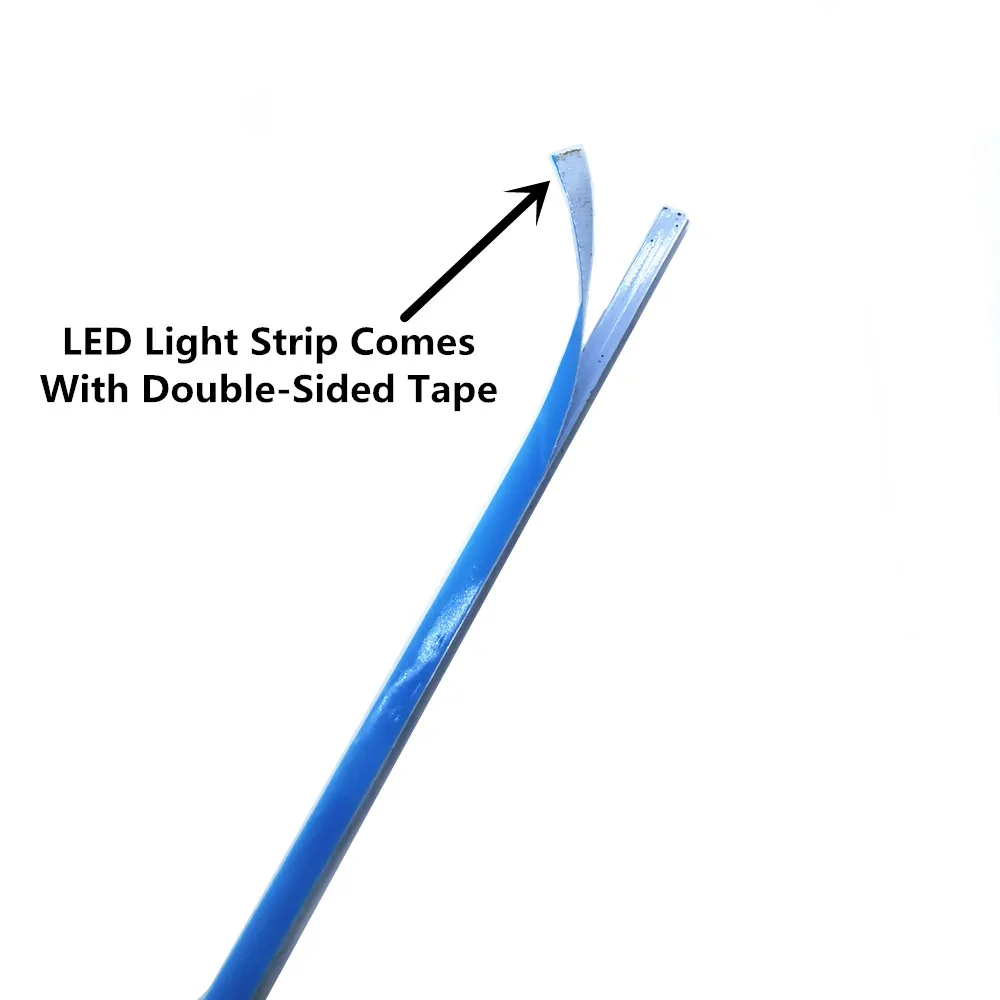

Easy to install, double-sided glue can be used to paste in the original LCD slot of the display, or to paste elsewhere.

Energy saving and power saving, power is only 8W. The power of the original four LCDs is generally 24 W.

Modified LED Backlight Advantage:

(1) The brightness of backlight lamp made of ordinary lamp tube is very dim when it is turned on. The brightness of backlight lamp made of LED does not need to wait until it is fully preheated. When it is turned on, the brightness of backlight lamp made of LED does not need to wait at all.

(2) The backlight made of ordinary lamp tube consumes no energy, and the LED backlight lamp is both energy-saving and environment-friendly.

(3) And life is more than three times as long as the backlight lamp made by ordinary lamp tube. There is no need to change the backlight for a lifetime. One investment will benefit all one’s life.

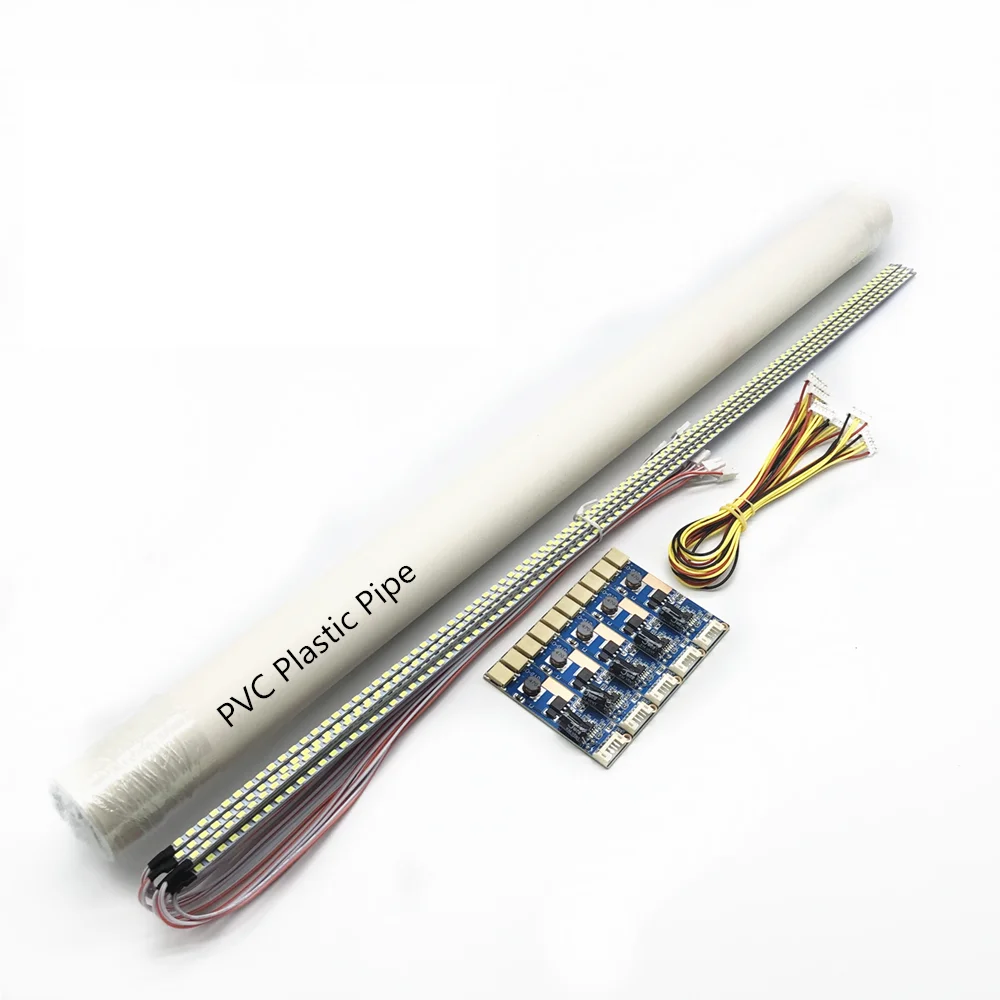

Packaging includes: 1Set (LED lamp bar * 2 + constant current plate + connecting wire)

1. 1 Conjunto 15 ”-315 17”-350 19 ”-417
